SKU: 6203-2RS/C3-KOY

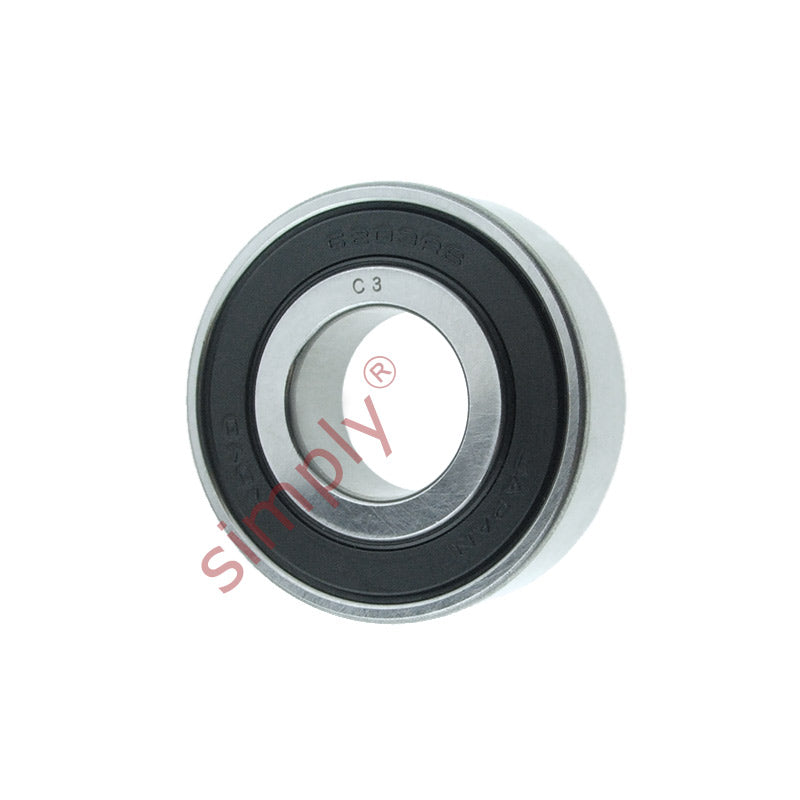

KOYO 62032RSC3 Rubber Sealed Deep Groove Ball Bearing 17x40x12mm
Equivalent to: 6203NSEC3 6203DUC3 6203RSC3 6203RSHC3 6203PC3 6203RSRC3 6203LUC3 62032NSEC3 6203DDUC3 62032RS1C3 62032RSHC3 6203PPC3 62032RSRC3 6203LLU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
KOYO Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 40mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 9.55 kN |
| Static load | 4.8 kN |
| Max speed in oil | 21000 rpm |
| Max speed in grease | 12000 rpm |
