SKU: 6201-NR-FAG

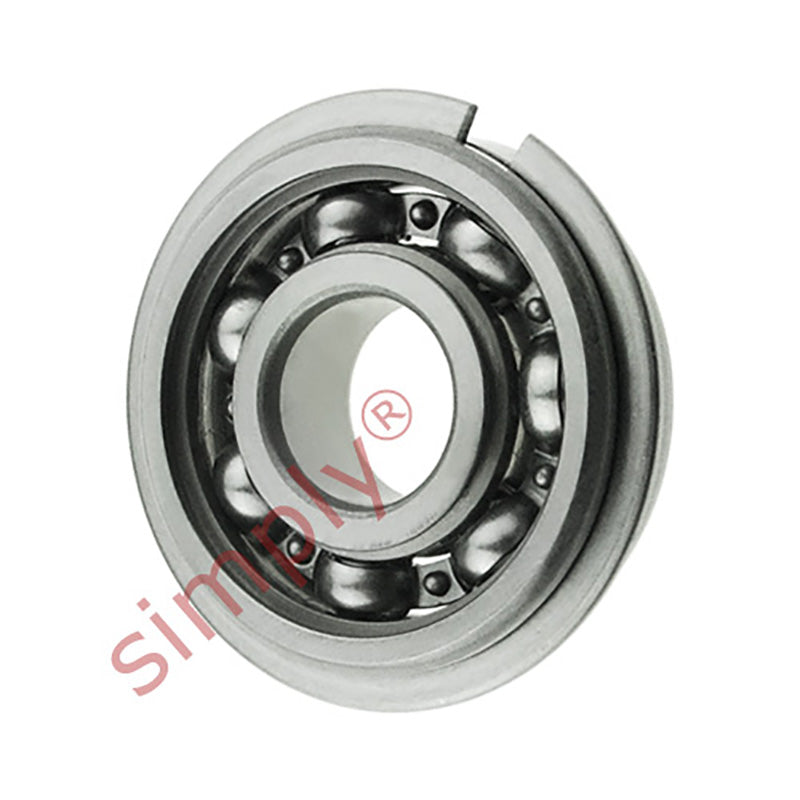

FAG 6201NR Deep Groove Ball Bearing with Snap Ring 12x32x10mm
FAG 6201NR Deep Groove Ball Bearing with Snap Ring 12x32x10mm
Out of stock
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 12mm |
|---|---|
| D | 32mm |
| B | 10mm |
| Dyamic load C | 7.28 kN |
| Static load Co | 3.1 kN |
| Fatigue load limit Pu | 0.132 kN |
| Reference speed | 50000 rpm |
| Limiting speed | 32000 rpm |
| Mass | 0.037 kg |
| d1 | 18.5mm |
| d2 | 25.7mm |
| D2 | 27.4mm |
| r1r2 min | 0.6mm |
| da min | 16.2 |
