SKU: 61919-2RS1/C3-SKF

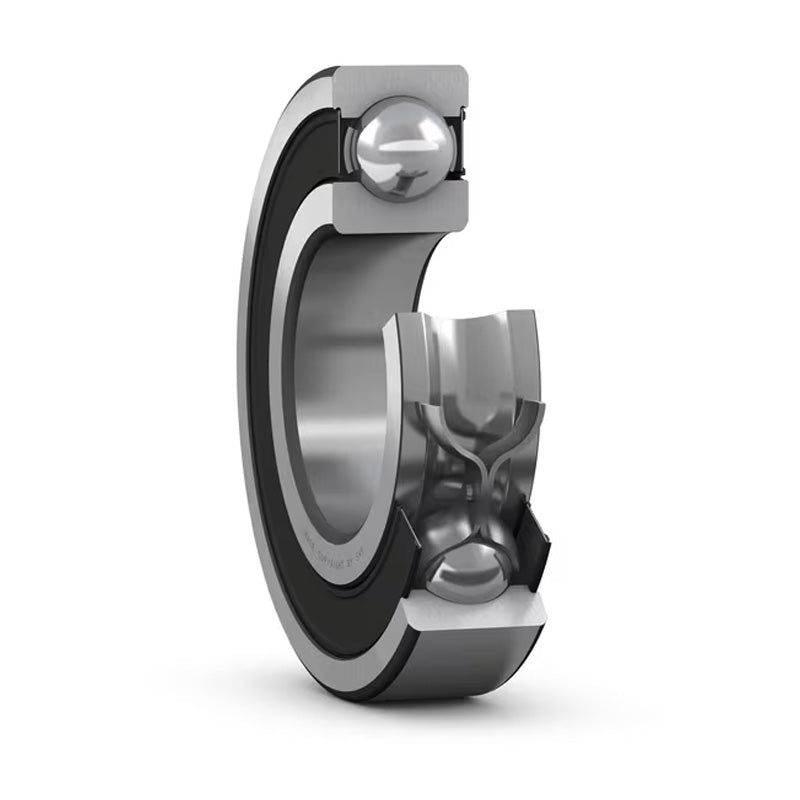

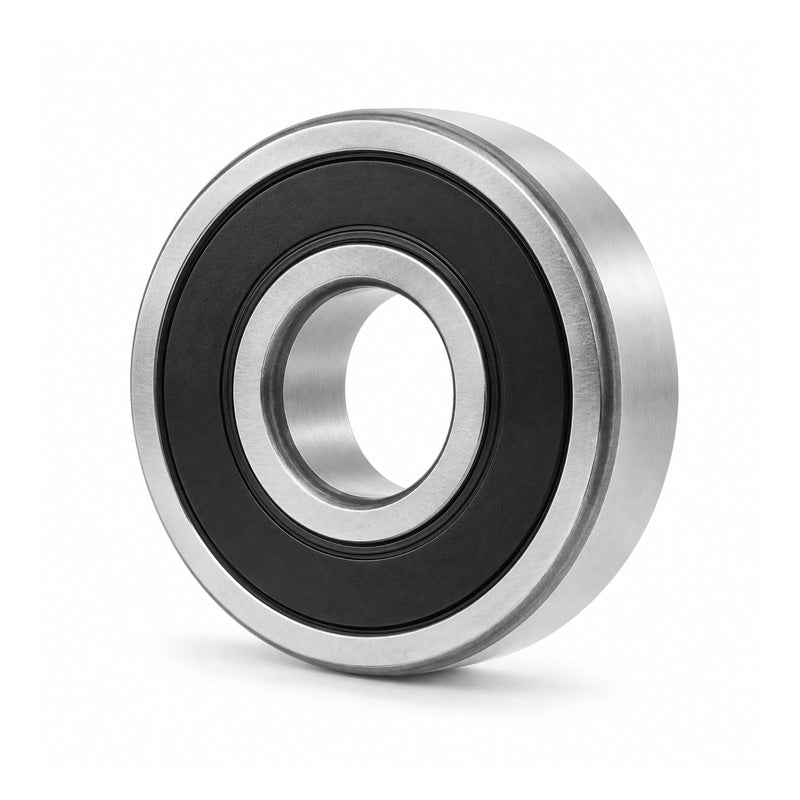

SKF 619192RS1C3 Rubber Sealed Thin Section Deep Groove Ball Bearing 95x130x18mm
Equivalent to: 61919NSEC3 61919DUC3 61919RSC3 61919RSHC3 61919PC3 61919RSRC3 61919LUC3 6919NSEC3 6919DUC3 6919RSC3 6919RSHC3 6919PC3 6919RSRC3 6919LUC3 619192NSEC3 61919DDUC3 619192RSC3 619192RSHC3 61919PPC3 619192RSRC3 61919LLU 69192NSEC3 6919DDUC3 69192RSC3 69192RS1C3 69192RSHC3 6919PPC3 69192RSRC3 6919LLUC3
Out of stock
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 130mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 95mm |
|---|---|
| D | 130mm |
| B | 18mm |
| Dynamic load C | 33.8 kN |
| Static load Co | 33.5 kN |
| Fatigue load limit Pu | 1.43 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 3000 rpm |
| Weight | 0.61 kg |
| d1 | 106mm |
| D2 | 122mm |
| r1r2 min | 1.1mm |
| da min | 101mm |
| Da max | 124mm |
| ra max | 1mm |
| Calculation factor kr | 0.02 |
| Calculation factor f0 | 17 |
