SKU: 61913-2RS1-SKF

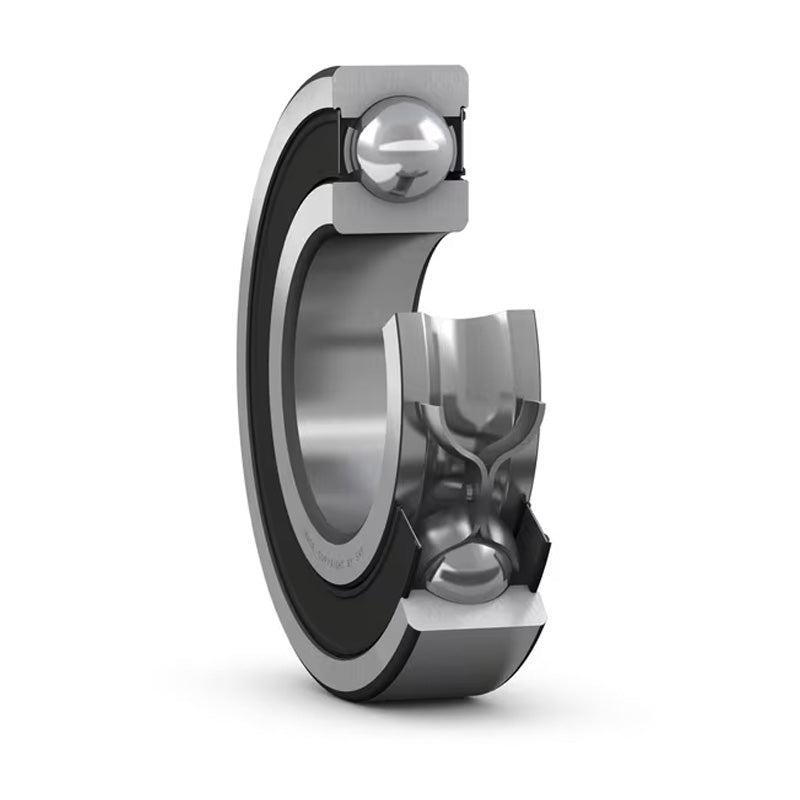

SKF 619132RS1 Rubber Sealed Thin Section Deep Groove Ball Bearing 65x90x13mm
Equivalent to: 61913NSE 61913DU 61913RS 61913RSH 61913P 61913RSR 61913LU 6913NSE 6913DU 6913RS 6913RSH 6913P 6913RSR 6913LU 619132NSE 61913DDU 619132RS 619132RSH 61913PP 619132RSR 61913LLU
Out of stock
Share this product
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 65mm |
|---|---|
| D | 90mm |
| B | 13mm |
| Dynamic load C | 17.4 kN |
| Static load Co | 16 kN |
| Fatigue load limit Pu | 0.68 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 4300 rpm |
| Weight | 0.22 kg |
| d2 | 73.2mm |
| D2 | 84.2mm |
| r1r2 min | 1mm |
| da min | 69.6mm |
| da max | 73mm |
| Da max | 85.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.02 |
| Calculation factor f0 | 17 |
