SKU: 61913-2RS1/C3-SKF

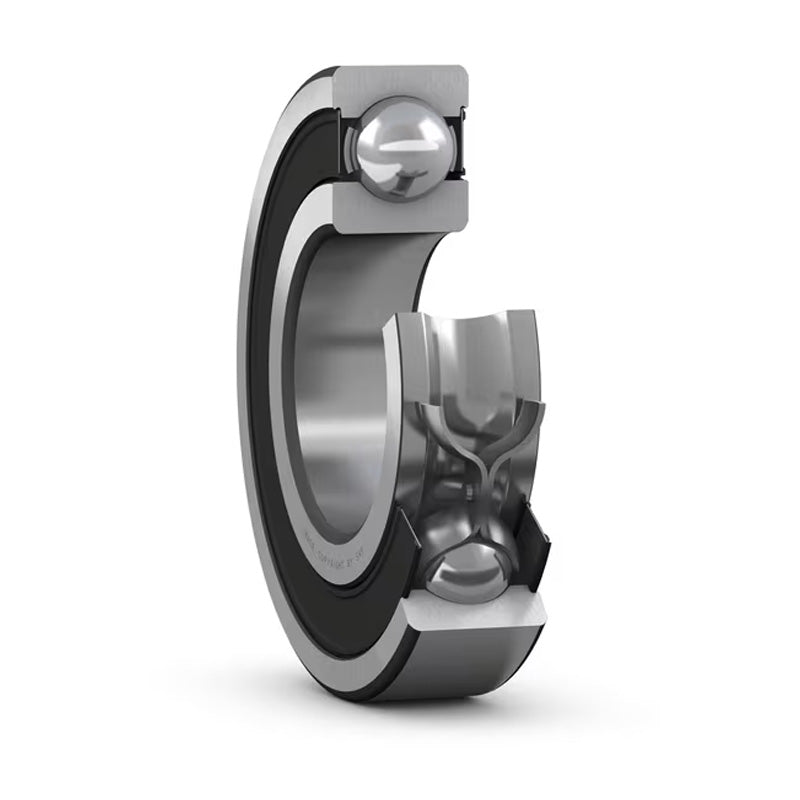

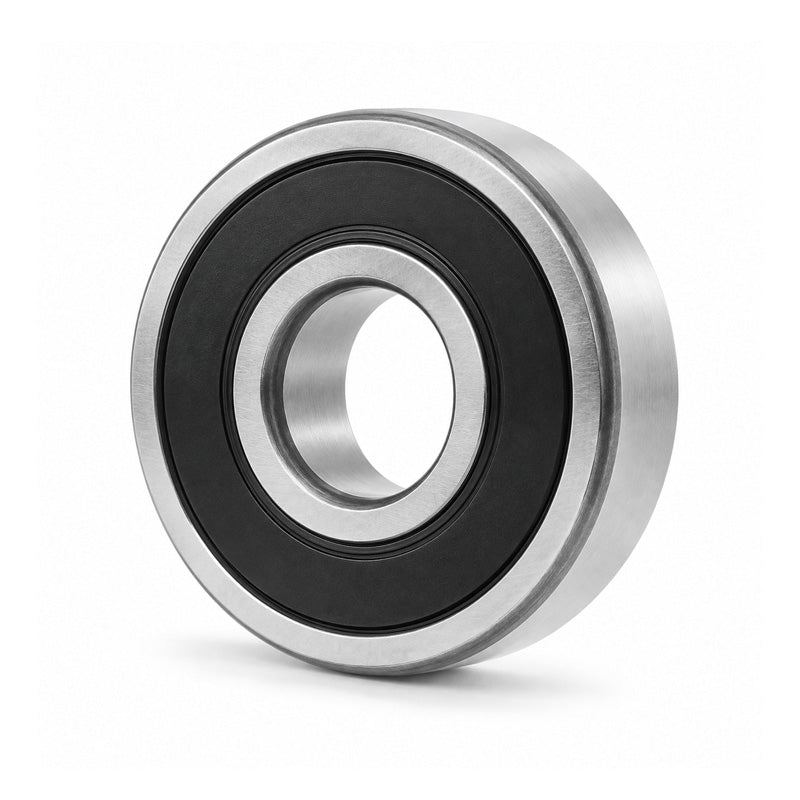

SKF 619132RS1C3 Rubber Sealed Thin Section Deep Groove Ball Bearing 65x90x13mm
Equivalent to: 61913NSEC3 61913DUC3 61913RSC3 61913RSHC3 61913PC3 61913RSRC3 61913LUC3 6913NSEC3 6913DUC3 6913RSC3 6913RSHC3 6913PC3 6913RSRC3 6913LUC3 619132NSEC3 61913DDUC3 619132RSC3 619132RSHC3 61913PPC3 619132RSRC3 61913LLU 69132NSEC3 6913DDUC3 69132RSC3 69132RS1C3 69132RSHC3 6913PPC3 69132RSRC3 6913LLUC3
Out of stock
Share this product
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 65mm |
|---|---|
| D | 90mm |
| B | 13mm |
| Dynamic load C | 17.4 kN |
| Static load Co | 16 kN |
| Fatigue load limit Pu | 0.68 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 4300 rpm |
| Weight | 0.22 kg |
| d2 | 73.2mm |
| D2 | 84.2mm |
| r1r2 min | 1mm |
| da min | 69.6mm |
| da max | 73mm |
| Da max | 85.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.02 |
| Calculation factor f0 | 17 |
