SKU: 61904-2RS-CDX

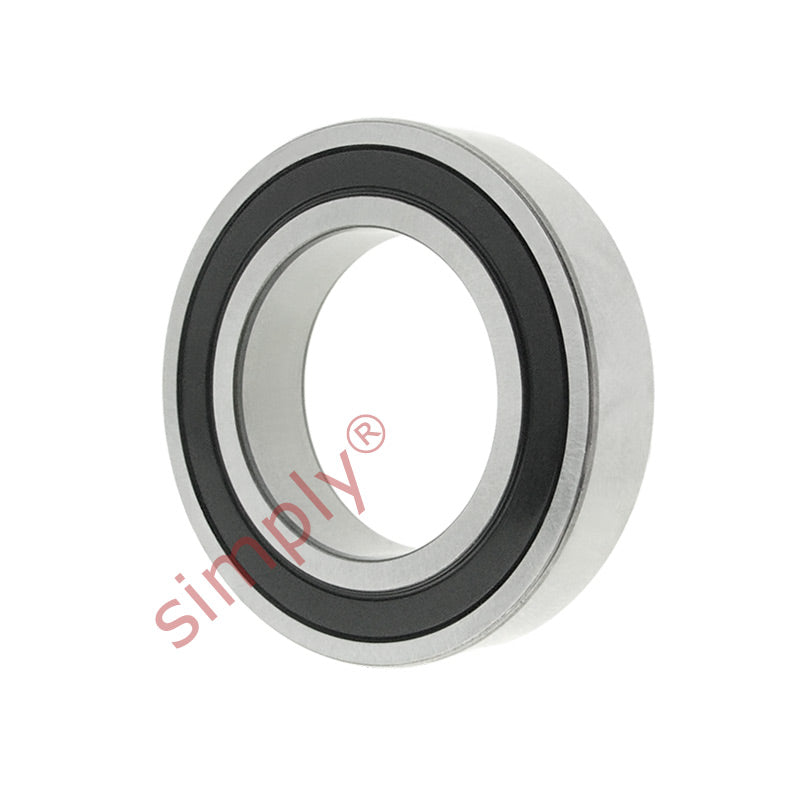

Codex 619042RS Rubber Sealed Thin Section Deep Groove Ball Bearing 20x37x9mm
Codex 619042RS Rubber Sealed Thin Section Deep Groove Ball Bearing 20x37x9mm
Regular price
€8,95
ex VAT
Regular price
Sale price
€8,95
ex VAT
Equivalent to: 619042RS 619042RSH 619042RS1 619042RSR 619042RSL 61904LFS 61904EE 61904DU 61904LLU 61904PP EL202RS
In stock
Price Break
4+
€6,20
10+
€5,85
20+
€5,78
30+
€5,71
50+
€5,64
75+
€5,57
100+
€5,23
200+
€5,16
250+
€5,09
500+
€5,02
1000+
€4,88
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 37mm
- Width:
- 9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 37mm |
| B | 9mm |
| Dynamic Load | 6.37 kN |
| Static Load | 3.65 kN |
| Fatigue Load limit Pu | 0.156 |
| Reference Speed | 43000 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.038kg |
| d1 | -mm |
| D2 | 32.8mm |
| r1r2 | 0.3mm |
| da min | 22mm |
| Da max | 35mm |
| ra max | 0.3mm |
| Calc Factor kr | 0.02 |
| Calc Factor Cor f0 | 15 |
