SKU: 61900-2Z/C3-SKF

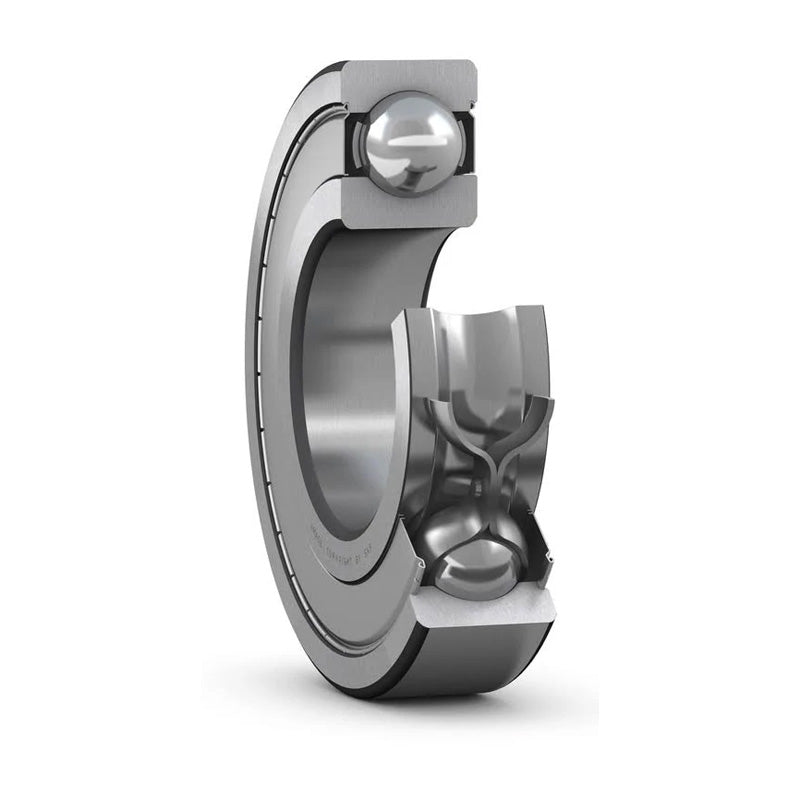

SKF 619002ZC3 Metal Shielded Thin Section Deep Groove Ball Bearing 10x22x6mm
Equivalent to: 61900ZZEC3 61900ZZC3 61900.2ZC3 61900KDDC3 61900DDC3 619002ZRC3 61900FFC3 6900ZZEC3 6900ZZC3 69002ZC3 6900.2ZC3 6900KDDC3 6900DDC3 69002ZRC3 6900FFC3
Out of stock
Share this product
Description
|
Metal Shielded Thin Section Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Width:
- 6mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 10mm |
|---|---|
| D | 22mm |
| B | 6mm |
| Dynamic load C | 2.08 kN |
| Static load Co | 0.85 kN |
| Fatigue load limit Pu | 0.036 kN |
| Reference speed | 75000 rpm |
| Limiting speed | 36000 rpm |
| Weight | 0.01 kg |
| d1 | 0mm |
| d2 | 12mm |
| D2 | 19mm |
| r1r2 min | 0.3mm |
| da min | 12mm |
| da max | 12mm |
| Da max | 20mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.02 |
| Calculation factor f0 | 9.3 |
