SKU: 619/4-MB

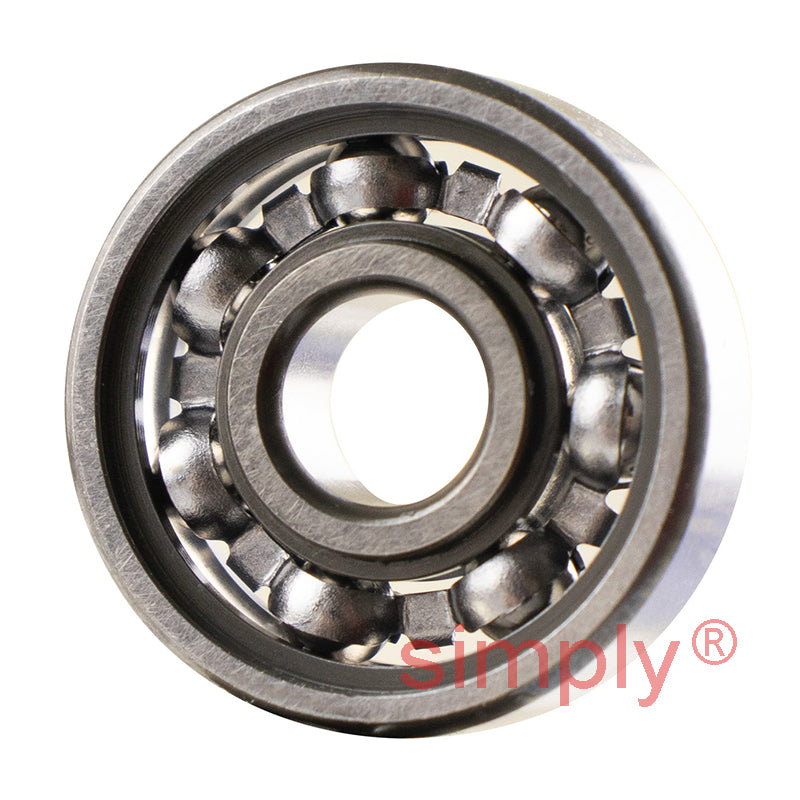

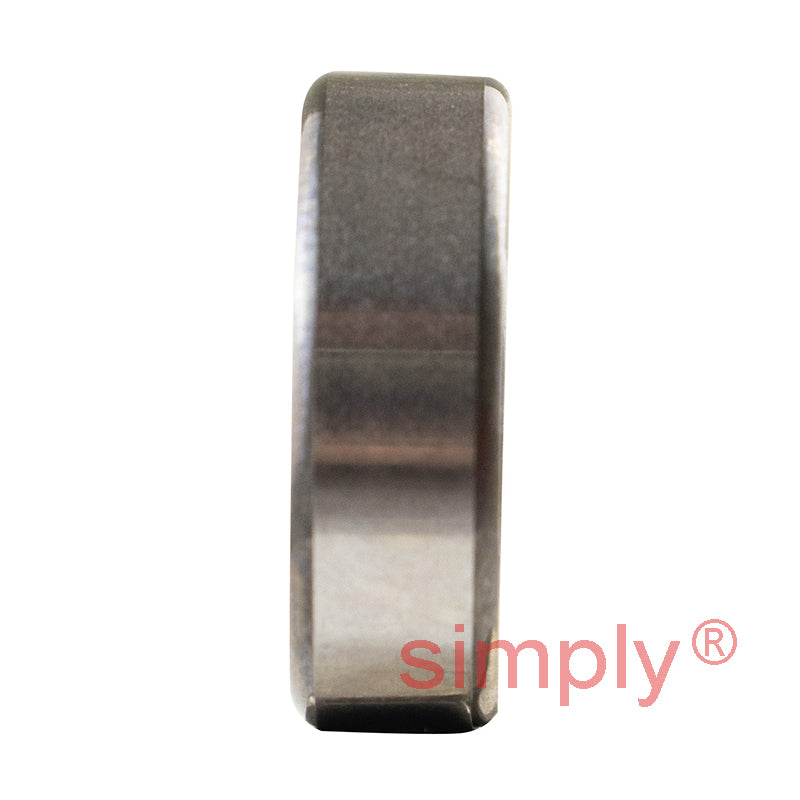

Major Branded 619/4 Open Deep Groove Ball Bearing 4x11x4mm
Major Branded 619/4 Open Deep Groove Ball Bearing 4x11x4mm
Regular price
€4,95
ex VAT
Regular price
Sale price
€4,95
ex VAT
Equivalent to: 694
In stock
Price Break
10+
€3,39
19+
€3,20
29+
€3,16
39+
€3,13
49+
€3,09
74+
€3,05
99+
€2,86
199+
€2,82
249+
€2,78
499+
€2,75
999+
€2,67
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 11mm
- Width:
- 4mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 4mm |
|---|---|
| D | 11mm |
| B | 4mm |
| Dynamic load C | 0.715 kN |
| Static load Co | 0.232 kN |
| Fatigue load limit Pu | 0.01 kN |
| Reference speed | 130000 rpm |
| Limiting speed | 80000 rpm |
| Mass | 0.0017 kg |
| d1 | 5.9mm |
| D1 | 9mm |
| D2 | 9.8mm |
| r1r2 min | 0.15mm |
| da min | 4.8mm |
| Da max | 10.2mm |
| ra max | 0.1mm |
| Calc factor Kr | 0.02 |
| Calc factor | 9.9 |
