SKU: 61822-2RSR-FAG

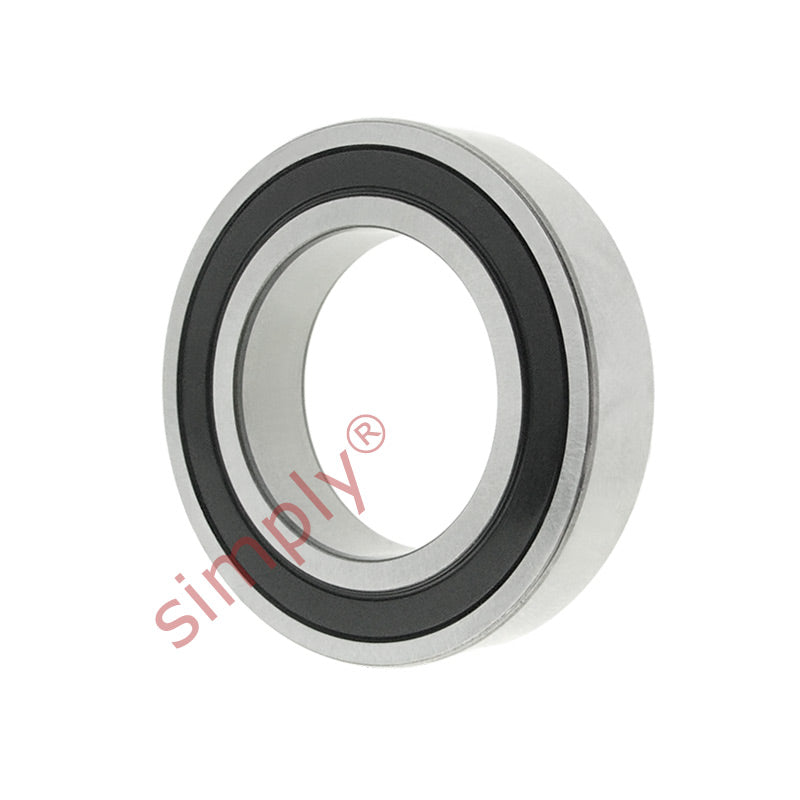

FAG 618222RSR Rubber Sealed Thin Deep Groove Ball Bearing 110x140x16mm
Equivalent to: 61822NSE 61822DU 61822RS 61822RSH 61822P 61822RSR 61822LU 6822NSE 6822DU 6822RS 6822RSH 6822P 6822RSR 6822LU 618222NSE 61822DDU 618222RS 618222RS1 618222RSH 61822PP 61822LLU 68222NSE 6822DDU 68222RS 68222RS1 68222RSH 6822PP 68222RSR 6822LLU
In stock
Couldn't load pickup availability
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 140mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 110mm |
|---|---|
| D | 140mm |
| B | 16mm |
| Dynamic load C | 28.1 kN |
| Static load Co | 26 kN |
| Fatigue load limit Pu | 1.25 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 2600 rpm |
| Mass | 0.6 kg |
| d2 | 115mm |
| D2 | 134mm |
| r1r2 min | 1mm |
| da min | 115 |
