SKU: 61817-2RSR-FAG

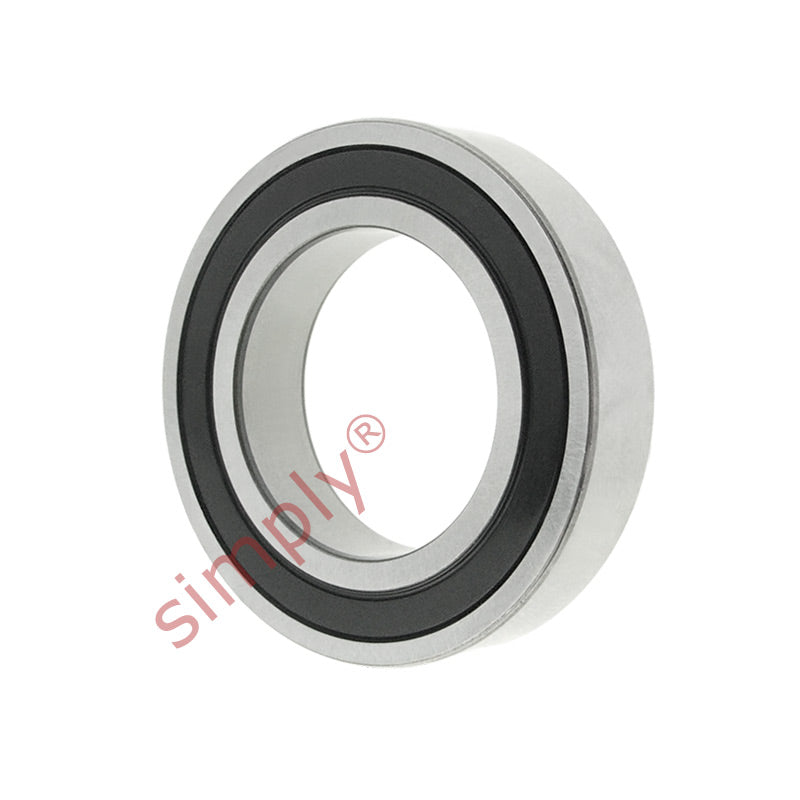

FAG 618172RSR Rubber Sealed Thin Deep Groove Ball Bearing 85x110x13mm
Equivalent to: 61817NSE 61817DU 61817RS 61817RSH 61817P 61817RSR 61817LU 6817NSE 6817DU 6817RS 6817RSH 6817P 6817RSR 6817LU 618172NSE 61817DDU 618172RS 618172RS1 618172RSH 61817PP 61817LLU 68172NSE 6817DDU 68172RS 68172RS1 68172RSH 6817PP 68172RSR 6817LLU
In stock
Couldn't load pickup availability
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 110mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 85mm |
|---|---|
| D | 110mm |
| B | 13mm |
| Dynamic load C | 19.5 kN |
| Static load Co | 20.8 kN |
| Fatigue load limit Pu | 0.88 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 3400 rpm |
| Mass | 0.27 kg |
| d1 | 93.2mm |
| D2 | 104mm |
| r1r2 min | 1mm |
| da min | 89.6 |
