SKU: 61815-2RSR-FAG

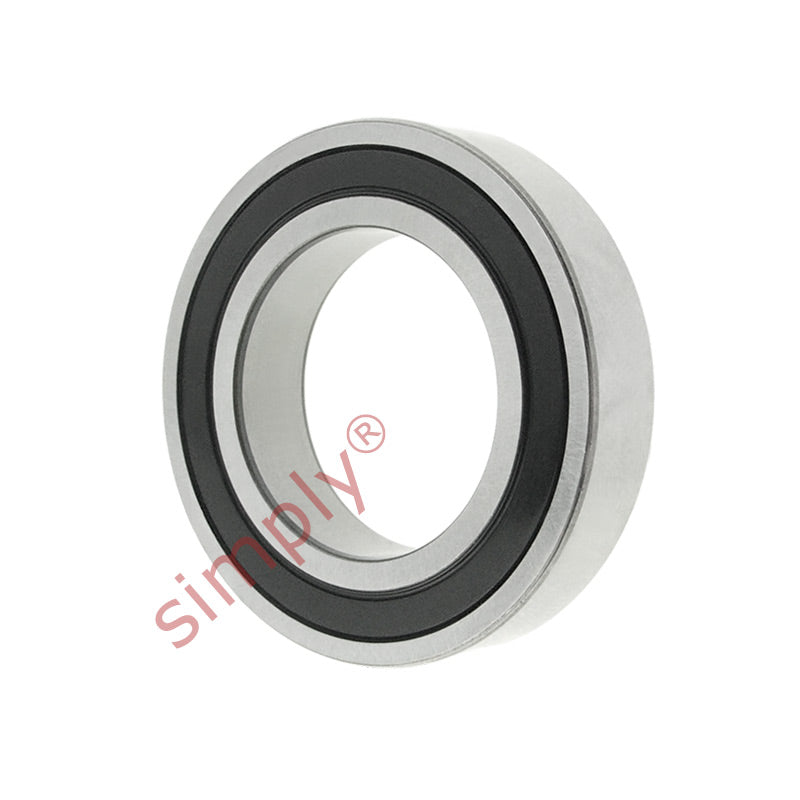

FAG 618152RSR Rubber Sealed Thin Deep Groove Ball Bearing 75x95x10mm
Equivalent to: 61815NSE 61815DU 61815RS 61815RSH 61815P 61815RSR 61815LU 6815NSE 6815DU 6815RS 6815RSH 6815P 6815RSR 6815LU 618152NSE 61815DDU 618152RS 618152RS1 618152RSH 61815PP 61815LLU 68152NSE 6815DDU 68152RS 68152RS1 68152RSH 6815PP 68152RSR 6815LLU
In stock
Couldn't load pickup availability
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 95mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 75mm |
|---|---|
| D | 95mm |
| B | 10mm |
| Dynamic load C | 12.7 kN |
| Static load Co | 14.3 kN |
| Fatigue load limit Pu | 0.61 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 4000 rpm |
| Mass | 0.15 kg |
| d1 | 81.6mm |
| d2 | 90.5mm |
| D2 | -mm |
| r1r2 min | 0.6mm |
| da min | 78.2 |
