SKU: 61814-2RSR-C3-FAG

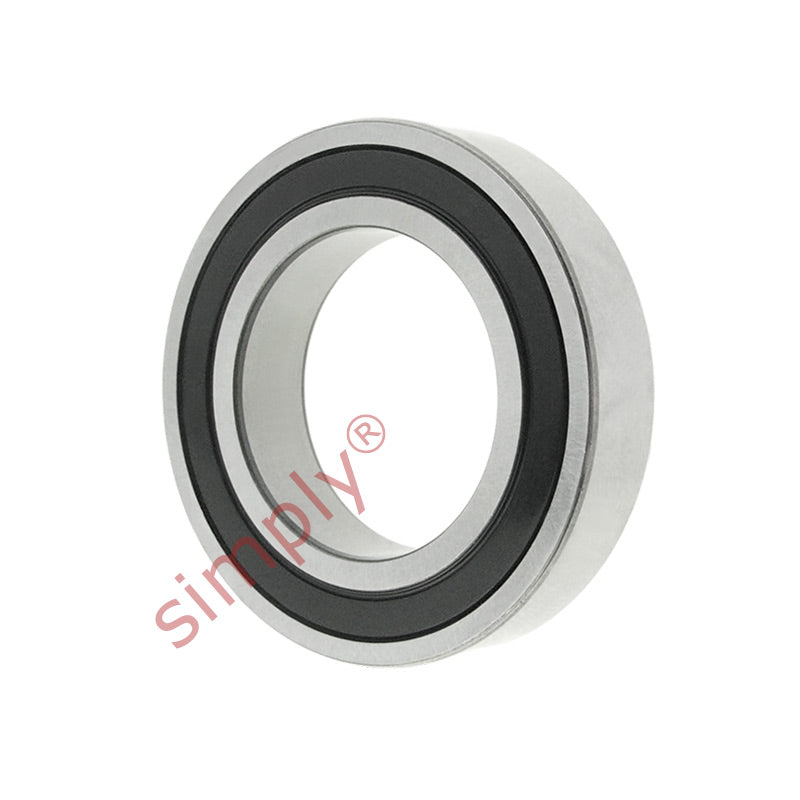

FAG 618142RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 70x90x10mm
Equivalent to: 61814NSEC3 61814DUC3 61814RSC3 61814RSHC3 61814PC3 61814RSRC3 61814LUC3 6814NSEC3 6814DUC3 6814RSC3 6814RSHC3 6814PC3 6814RSRC3 6814LUC3 618142NSEC3 61814DDUC3 618142RSC3 618142RS1C3 618142RSHC3 61814PPC3 61814LLU 68142NSEC3 6814DDUC3 68142RSC3 68142RS1C3 68142RSHC3 6814PPC3 68142RSRC3 6814LLUC3
Out of stock
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 90mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 70mm |
|---|---|
| D | 90mm |
| B | 10mm |
| Dynamic load C | 12.4 kN |
| Static load Co | 13.2 kN |
| Fatigue load limit Pu | 0.56 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 4300 rpm |
| Mass | 0.14 kg |
| d1 | 76.6mm |
| d2 | 85.5mm |
| D2 | -mm |
| r1r2 min | 0.6mm |
| da min | 73.2 |
