SKU: 61804-2RS1/C3-SKF

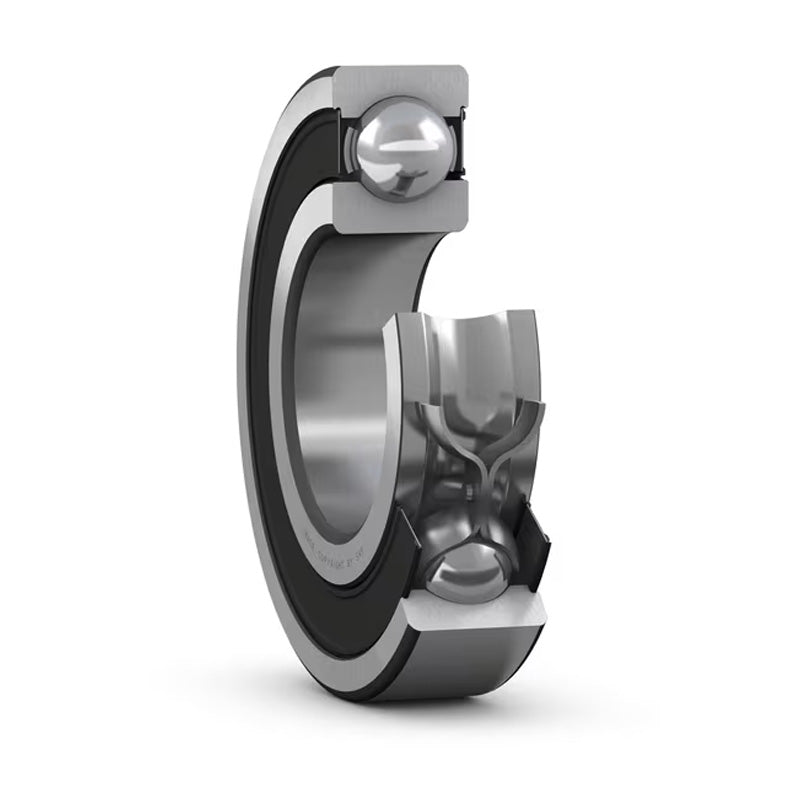

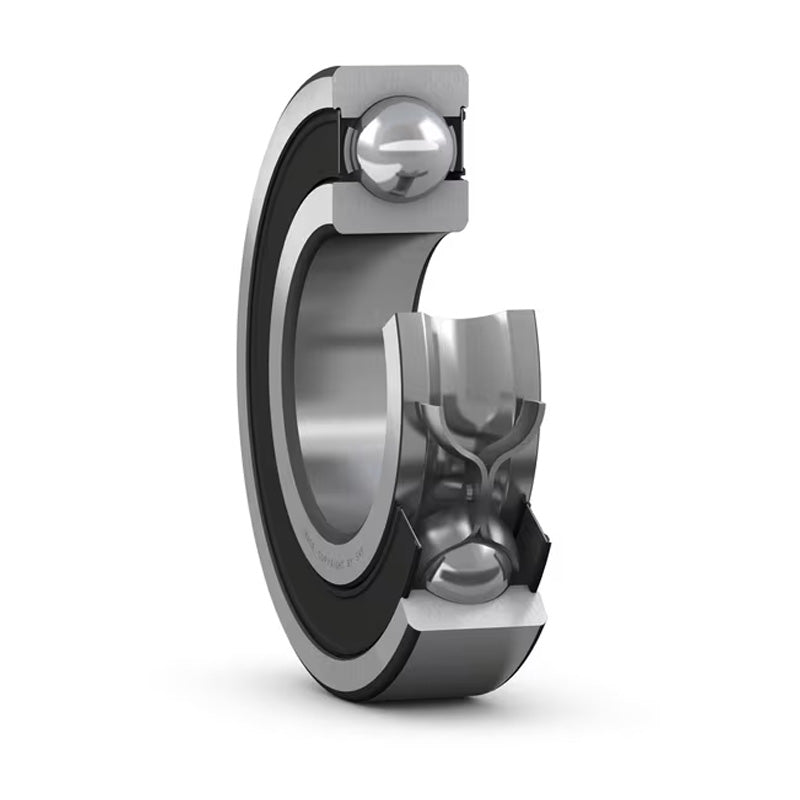

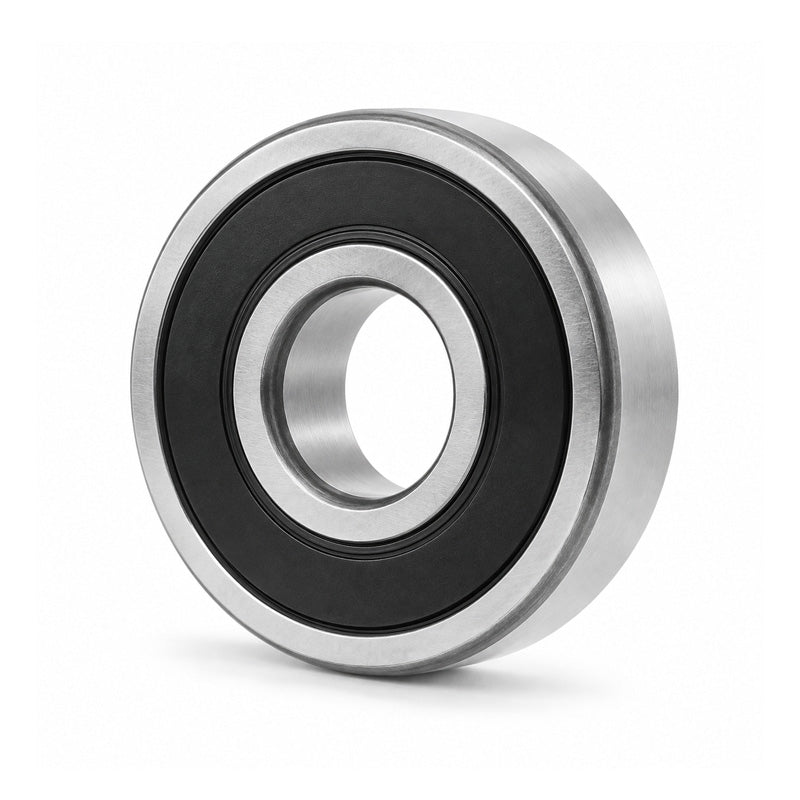

SKF 618042RS1C3 Rubber Sealed Thin Section Deep Groove Ball Bearing 20x32x7mm
Equivalent to: 61804NSEC3 61804DUC3 61804RSC3 61804RSHC3 61804PC3 61804RSRC3 61804LUC3 6804NSEC3 6804DUC3 6804RSC3 6804RSHC3 6804PC3 6804RSRC3 6804LUC3 618042NSEC3 61804DDUC3 618042RSC3 618042RSHC3 61804PPC3 618042RSRC3 61804LLU 68042NSEC3 6804DDUC3 68042RSC3 68042RS1C3 68042RSHC3 6804PPC3 68042RSRC3 6804LLUC3
Out of stock
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 32mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 20mm |
|---|---|
| D | 32mm |
| B | 7mm |
| Dynamic load C | 4.03 kN |
| Static load Co | 2.32 kN |
| Fatigue load limit Pu | 0.104 kN |
| Reference speed | 45000 rpm |
| Limiting speed | 13000 rpm |
| Weight | 0.018 kg |
| d2 | 22.6mm |
| D2 | 29.5mm |
| r1r2 min | 0.3mm |
| da min | 22mm |
| da max | 22.5mm |
| Da max | 30mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.015 |
| Calculation factor f0 | 15 |
