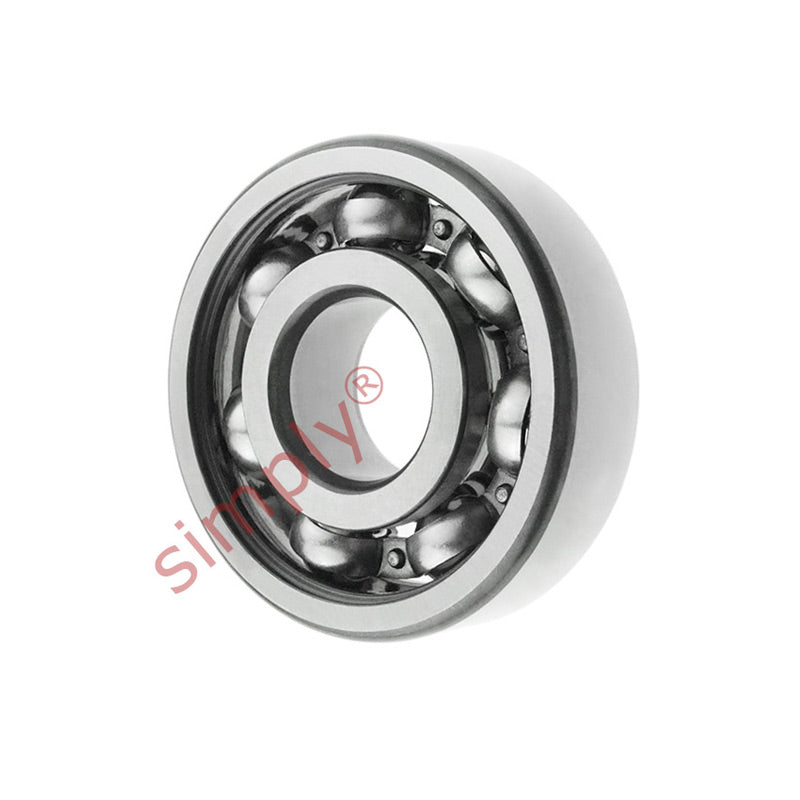

NTN 6024 Open Type Deep Groove Ball Bearing 120x180x28mm
NTN 6024 Open Type Deep Groove Ball Bearing 120x180x28mm
Regular price
€188,95
ex VAT
Regular price
Sale price
€188,95
ex VAT
Equivalent to: 6024CM 9124K 9124 124KS 6124 3L24 EL120 ELL120
In stock
Price Break
3+
€143,56
5+
€135,49
10+
€133,88
25+
€132,27
49+
€130,65
74+
€129,04
99+
€120,98
199+
€119,36
249+
€117,75
499+
€116,14
999+
€112,91
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 180mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 120mm |
| D | 180mm |
| B | 28mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 94 kN |
| C<sub>or</sub> | 79.5 kN |
| C<sub>u</sub> | 4.65 kN |
| f<sub>0</sub> | 15.9 kN |
| Grease | 3500 rpm |
| Oil | 4100 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 129mm |
| D<sub>a</sub> Max. | 171mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 2.07 kg |
