NACHI 6022ZZ Metal Shielded Deep Groove Ball Bearing 110x170x28mm

NACHI 6022ZZ Metal Shielded Deep Groove Ball Bearing 110x170x28mm
€193,95 ex VAT
€193,95 ex VAT
Sale Sold out

Equivalent to: 6022ZZE 60222Z 6022.2Z 6022KDD 6022DD 60222ZR 6022FF

In stock

Price Break
5+ €146,74
9+ €138,50
19+ €136,85
29+ €135,20
49+ €133,55
74+ €131,90
99+ €123,66
199+ €122,01
249+ €120,36
499+ €118,71
999+ €115,41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance.
Benefits: High-running accuracy and high-speed operation.
Brand / Quality:
Nachi - High Quality
Inside Diameter:
110mm
Outside Diameter:
170mm
Width:
28mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard

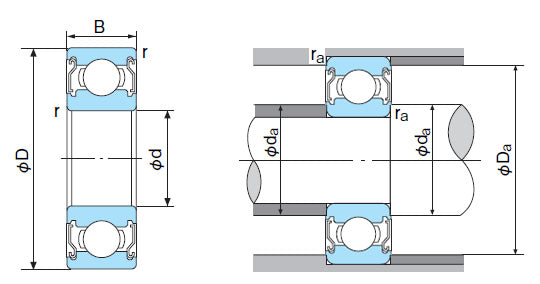

Technical
Inside Diameter d 110mm
Outside Diameter D 170mm
Width B 28mm
Min radius r 2mm
Dynamic load 84500 kN
Static load 73000 kN
Max speed 3800 rpm
da min 118mm
Da max 162mm
ra max 2mm
Weight 1.97 kg
