SKU: 6015ZNR-NTN

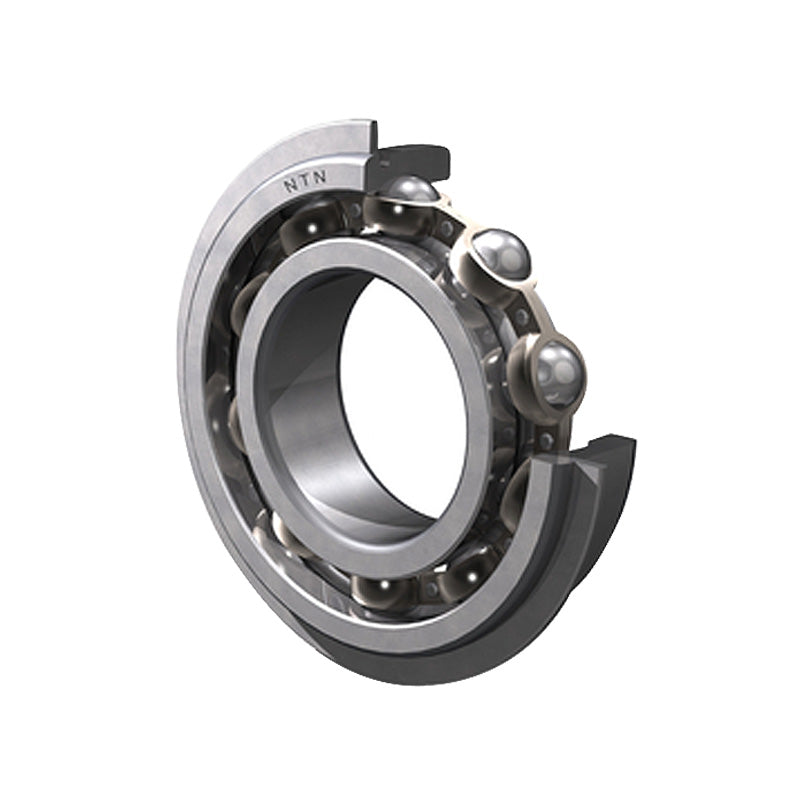

NTN 6015ZNR One Metal Shield Type Deep Groove Ball Bearing with Snap Ring 75x115x20mm

NTN 6015ZNR One Metal Shield Type Deep Groove Ball Bearing with Snap Ring 75x115x20mm
Regular price €60,95 ex VAT
Regular price Sale price €60,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €45,95
5+ €43,37
10+ €42,85
25+ €42,34
49+ €41,82
74+ €41,30
99+ €38,72
199+ €38,21
249+ €37,69
499+ €37,17
999+ €36,14
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 75mm
D 115mm
B 20mm
r<sub>s</sub> min 1.1mm
rNS Min. 0.5
--- Loads angles and speeds
C<sub>r</sub> 44 Kn
C<sub>or</sub> 33.5 kN
C<sub>u</sub> 2.44 kN
f<sub>0</sub> 15.8 kN
Grease 5700 rpm
Oil 6700 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 111.81
a Max. 2.87
b Min. 2.7
r<sub>o</sub> Max. 0.6
D<sub>2</sub> Max. 121.6
f Max. 2.46
--- Fitting Dimensions
d<sub>a</sub> Min. 81.5mm
d<sub>a</sub> Max. 85.5mm
D<sub>a</sub> Max. 108.5mm
D<sub>X</sub> (approx) 123
C<sub>Y</sub> Max. 5
C<sub>Z</sub> Min. 2.5
r<sub>as</sub> Max. 1mm
r<sub>Nas</sub> Max. 0.5
Weight 0.649 kg
