SKU: 6015-NTN

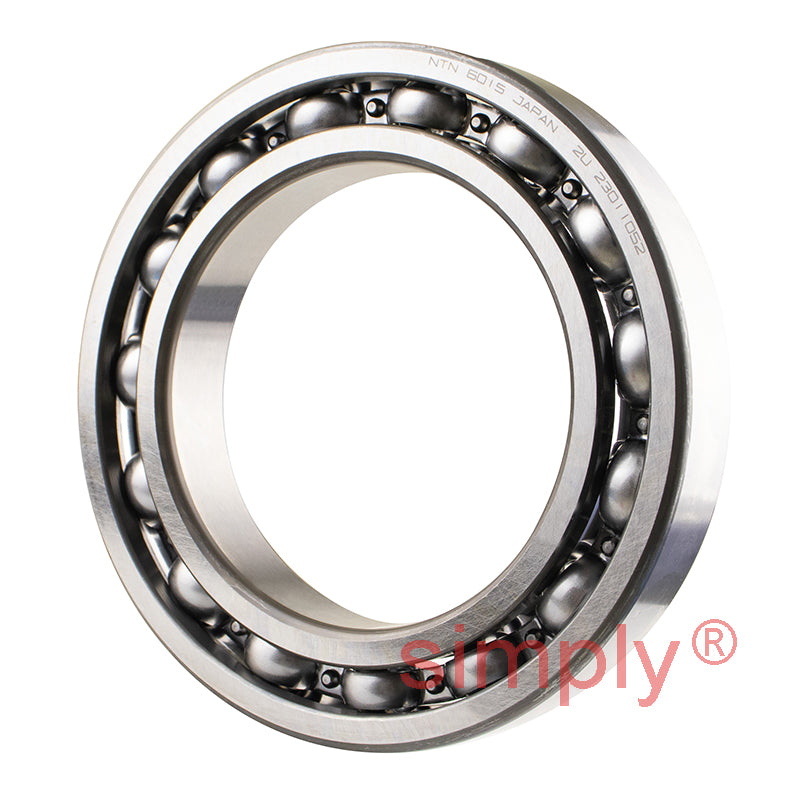

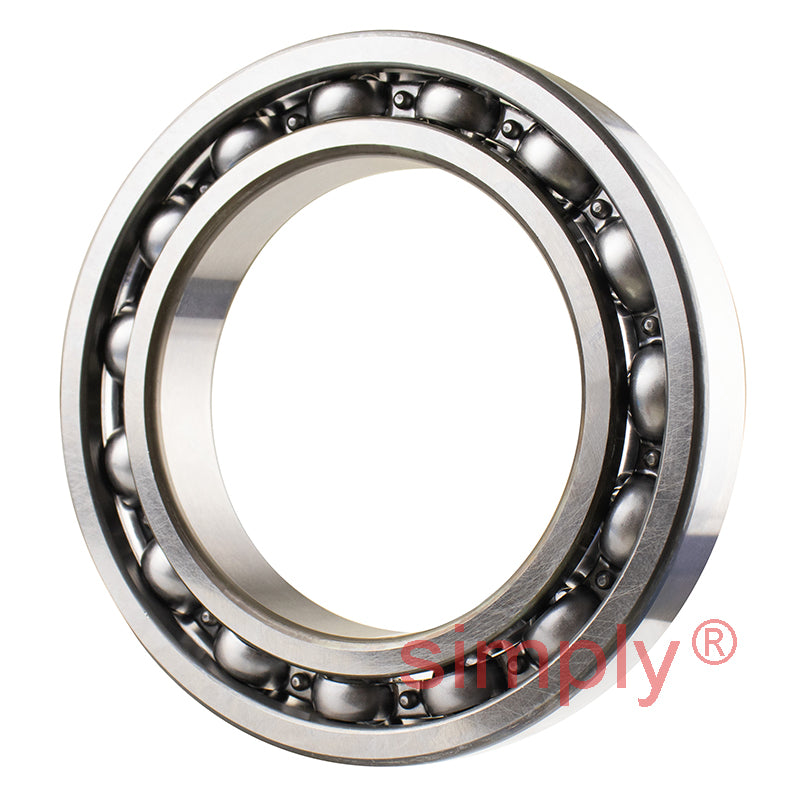

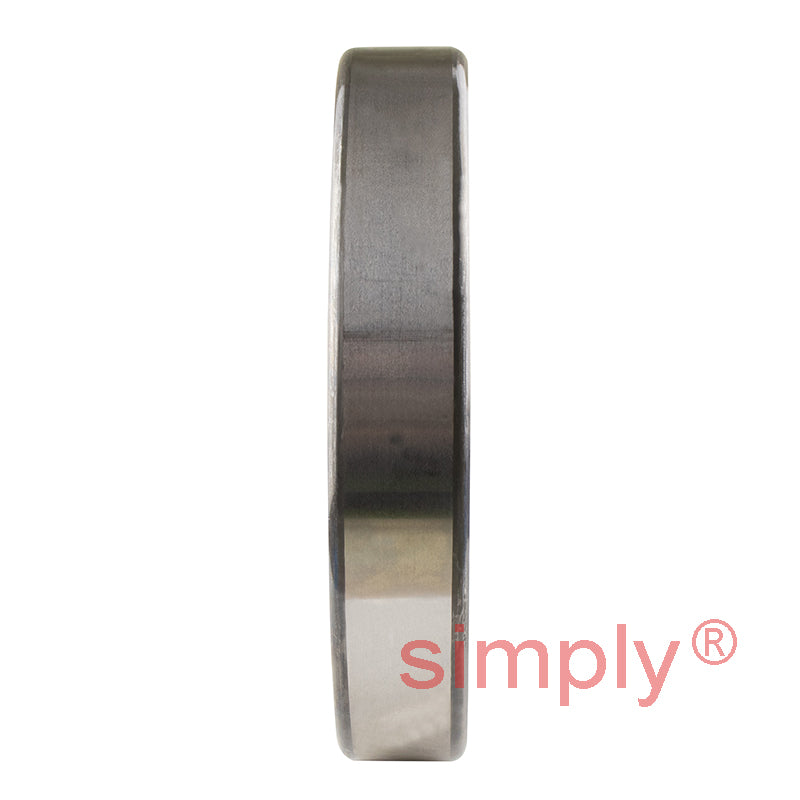

NTN 6015 Open Type Deep Groove Ball Bearing 75x115x20mm
NTN 6015 Open Type Deep Groove Ball Bearing 75x115x20mm
Regular price
€60,95
ex VAT
Regular price
Sale price
€60,95
ex VAT
Equivalent to: 6015CM 9115K 9115 115KS 6115 3L15 EL75 ELL75
In stock
Price Break
3+
€45,82
5+
€43,24
10+
€42,73
25+
€42,21
49+
€41,70
74+
€41,18
99+
€38,61
199+
€38,10
249+
€37,58
499+
€37,07
999+
€36,04
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 115mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 75mm |
| D | 115mm |
| B | 20mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 44 kN |
| C<sub>or</sub> | 33.5 kN |
| C<sub>u</sub> | 2.44 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 5700 rpm |
| Oil | 6700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 81.5mm |
| D<sub>a</sub> Max. | 108.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.649 kg |
