SKU: 6015-2RS/C3-CDX

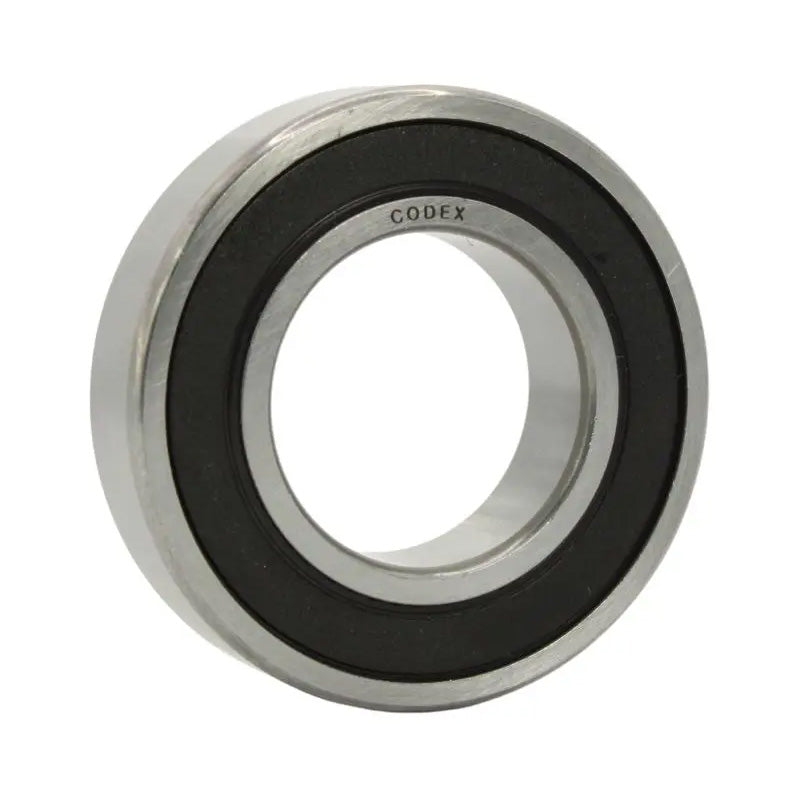

Codex 60152RSC3 Rubber Sealed Deep Groove Ball Bearing 75x115x20mm
Equivalent to: 60152RSC3 60152RSHC3 60152RS1C3 60152RSRC3 60152RSLC3 6015LFSC3 6015EEC3 6015DUC3 6015LLUC3 EL752RSC3 6015PPC3 9115PPC3 115KSZZC3 993L15C3 6115KKC3 10L75C3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 115mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 75mm |
|---|---|
| D | 115mm |
| B | 20mm |
| Dynamic load C | 41.6 kN |
| Static load Co | 33.5 kN |
| Fatigue load limit Pu | 1.43 |
| Reference speed | 12000 rpm |
| Limiting speed | 3400 rpm |
| Weight | 0.64 kg |
| d1 | 87.9mm |
| r1r2 | 1.1mm |
| da min | 81mm |
| Da max | 109mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 16 |
