SKU: 6014/HC5C3-SKF

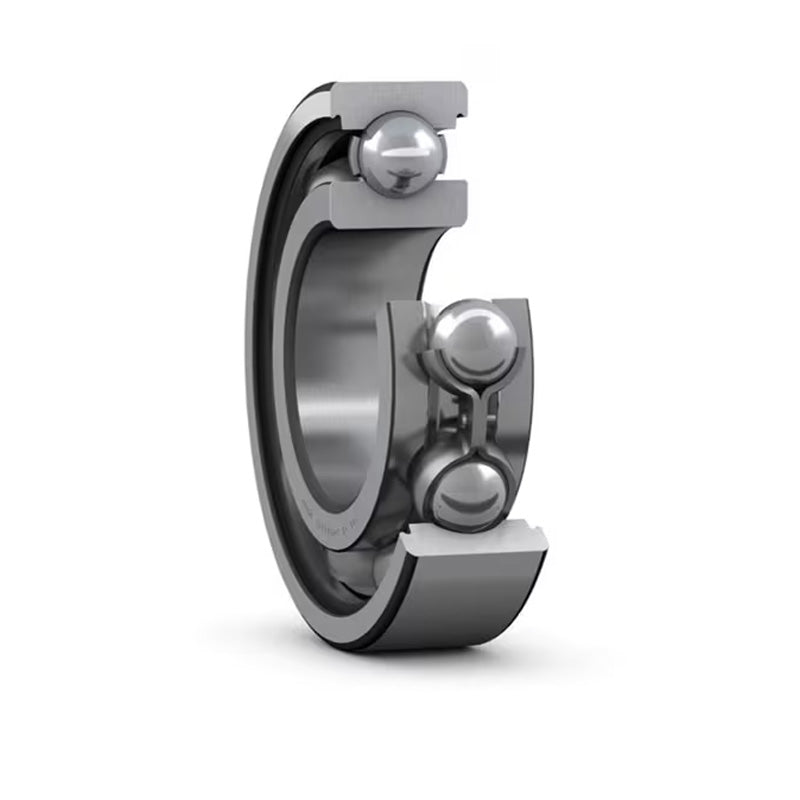

SKF 6014HC5C3 Hybrid Ball Bearing Open Type 70x110x20mm
SKF 6014HC5C3 Hybrid Ball Bearing Open Type 70x110x20mm
Out of stock
Share this product
Description
Description
|
SKF Life Hybrid Deep Groove Ball Bearings: Special application bearings, the outer and inner races are made form bearing steel and the rolling elements are made from Silicon Nitride (SiN4) In addition to being excellent electrical insulators hybrid bearings have a higher speed capacity and longer service life that normal steel only bearings. Benefits: Electrically insulated, sealed for life, high life expectancy. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 110mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- C5
Technical
Technical
| d | 70mm |
|---|---|
| D | 110mm |
| B | 20mm |
| Dynamic load Cr | 39.7 kN |
| Static load Cor | 31 kN |
| Fatigue load limit | 1.32 kN |
| Reference speed | 16000 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.57 kg |
| d1 | 82.9mm |
| D1 | 99.9mm |
| r1r2 min | 1.1mm |
| da min | 76mm |
| Da max | 104mm |
| ra max | 1mm |
| fo | 16 |
