SKU: 6012-NR-FAG

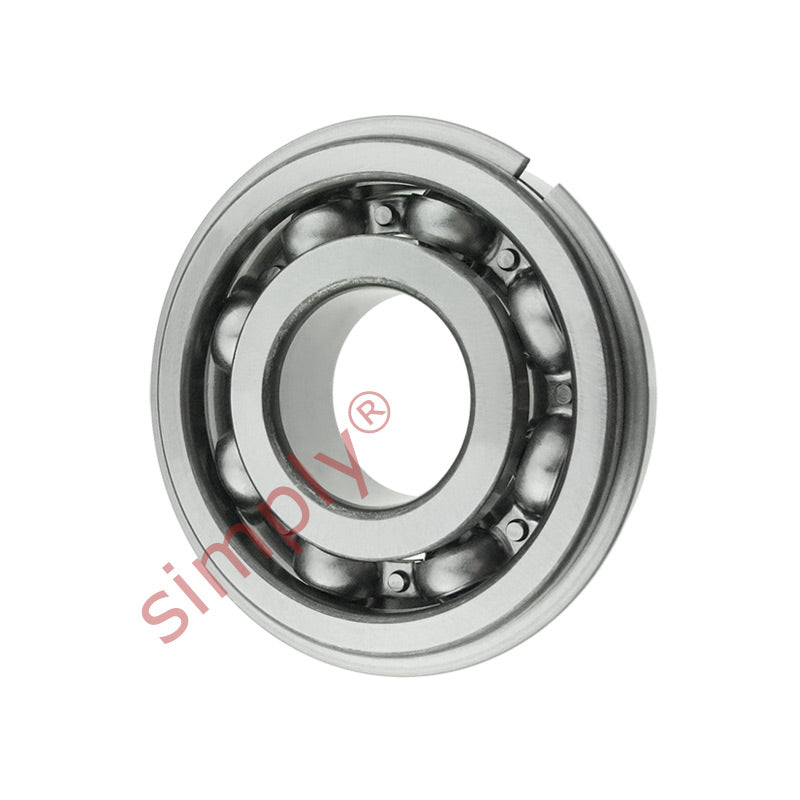

FAG 6012NR Deep Groove Ball Bearing with Snap Ring 60x95x18mm
FAG 6012NR Deep Groove Ball Bearing with Snap Ring 60x95x18mm
Out of stock
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 95mm |
| B | 18mm |
| Dyamic load C | 30.7 kN |
| Static load Co | 23.2 kN |
| Fatigue load limit Pu | 0.98 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 9500 rpm |
| Mass | 0.4 kg |
| d1 | 71.3mm |
| d2 | 81.5mm |
| D2 | 86.5mm |
| r1r2 min | 1.1mm |
| da min | 66 |
