SKU: 6007NR-NTN

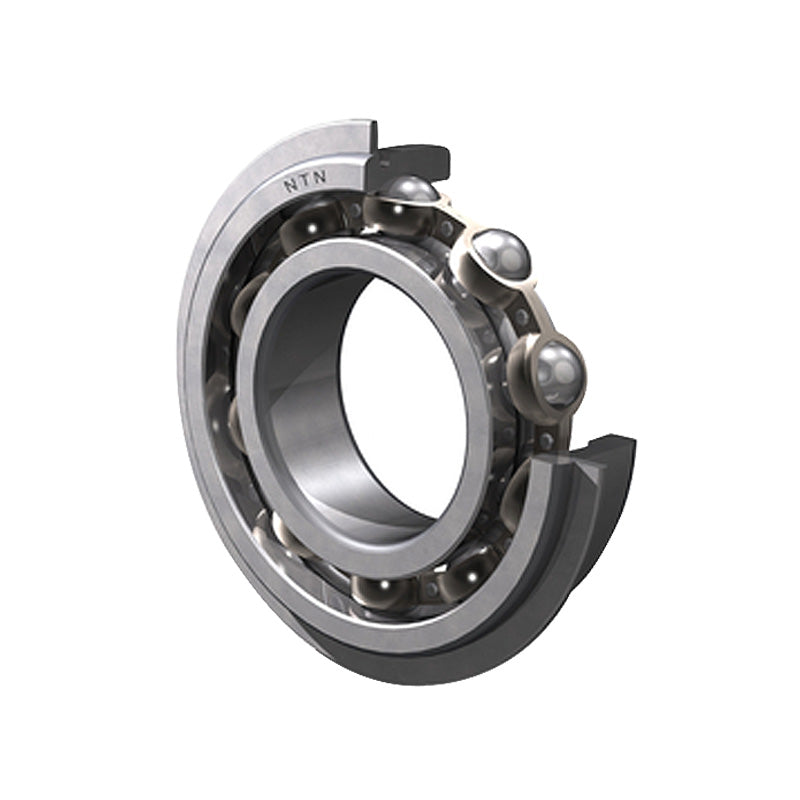

NTN 6007NR Open Type Deep Groove Ball Bearing with Snap Ring 35x62x14mm
NTN 6007NR Open Type Deep Groove Ball Bearing with Snap Ring 35x62x14mm
Regular price
€17,95
ex VAT
Regular price
Sale price
€17,95
ex VAT
Equivalent to: 6007NRCM 9107KG 107KSG 43L07
In stock
Price Break
3+
€13,55
5+
€12,78
10+
€12,63
25+
€12,48
49+
€12,33
74+
€12,18
99+
€11,42
199+
€11,26
249+
€11,11
499+
€10,96
999+
€10,65
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 62mm |
| B | 14mm |
| r<sub>s</sub> min | 1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 17.7 kN |
| C<sub>or</sub> | 10.3 kN |
| C<sub>u</sub> | 0.805 kN |
| f<sub>0</sub> | 14.8 kN |
| Grease | 12000 rpm |
| Oil | 14000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 59.61mm |
| a Max. | 2.08mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 67.7mm |
| f Max. | 1.7mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 40mm |
| d<sub>a</sub> Max. | 42mm |
| D<sub>a</sub> Max. | 57mm |
| D<sub>X</sub> (approx) | 68.5mm |
| C<sub>Y</sub> Max. | 3.4mm |
| C<sub>Z</sub> Min. | 1.7mm |
| r<sub>as</sub> Max. | 1mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.155 kg |
