SKU: 6007LLUC3/5K-NTN

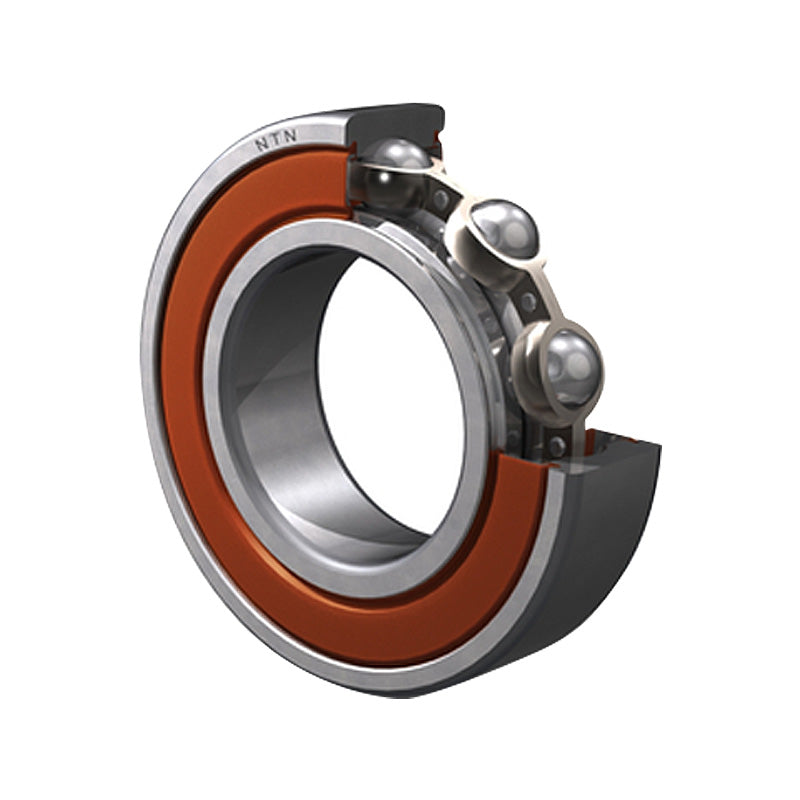

NTN 6007LLUC3/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 35x62x14mm
Equivalent to: 6007NSEC3 6007DUC3 6007RSC3 6007RSHC3 6007PC3 6007RSRC3 6007LUC3 60072NSEC3 6007DDUC3 60072RSC3 6007-2RSC3 60072RS1C3 60072RSHC3 6007PPC3 60072RSRC3 6007LLUC3 6007RS2C3 60072RS2C3 60072RSLC3 6007LFSC3 6007EEC3 EL352RSC3 9107PPC3 107KSZZC3 993L07C3 6107KKC3 10L35C3
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 62mm |
| B | 14mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 17.7 kN |
| C<sub>or</sub> | 10.3 kN |
| C<sub>u</sub> | 0.805 kN |
| f<sub>0</sub> | 14.8 kN |
| Speed | 6800 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 40mm |
| d<sub>a</sub> Max. | 42mm |
| D<sub>a</sub> Max. | 57mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.155 kg |
