SKU: 6006-NR-FAG

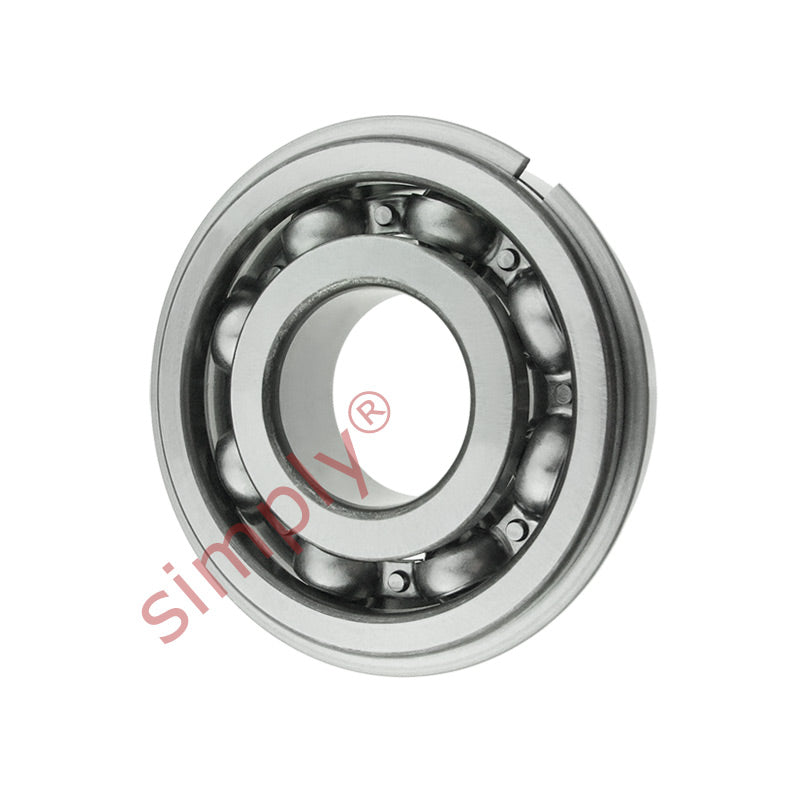

FAG 6006NR Deep Groove Ball Bearing with Snap Ring 30x55x13mm
FAG 6006NR Deep Groove Ball Bearing with Snap Ring 30x55x13mm
Out of stock
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 55mm |
| B | 13mm |
| Dyamic load C | 13.8 kN |
| Static load Co | 8.3 kN |
| Fatigue load limit Pu | 0.355 kN |
| Reference speed | 28000 rpm |
| Limiting speed | 17000 rpm |
| Mass | 0.12 kg |
| d1 | 38.2mm |
| d2 | 46.8mm |
| D2 | 49mm |
| r1r2 min | 1mm |
| da min | 34.6 |
