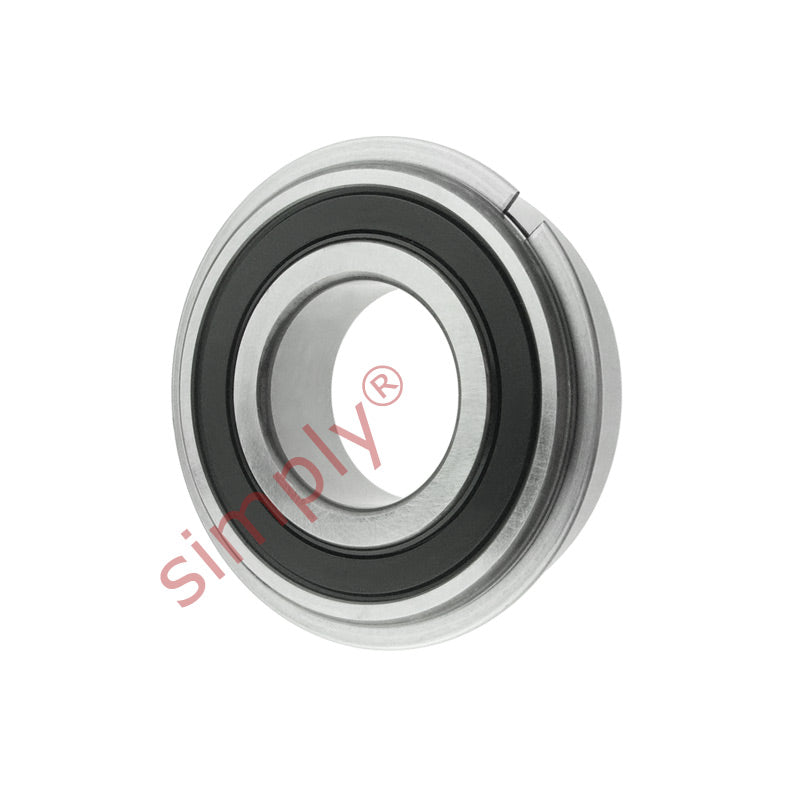

NSK 6005VVNR Non Contact Rubber Sealed Deep Groove Ball Bearing With Snap Ring 25x47x12mm
NSK 6005VVNR Non Contact Rubber Sealed Deep Groove Ball Bearing With Snap Ring 25x47x12mm
Regular price
€10,95
ex VAT
Regular price
Sale price
€10,95
ex VAT
Equivalent to: 60052RSHNR 6005RS1NR
In stock
Price Break
4+
€7,96
10+
€7,51
20+
€7,42
30+
€7,33
50+
€7,24
75+
€7,15
100+
€6,71
200+
€6,62
250+
€6,53
500+
€6,44
1000+
€6,26
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Non Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing. These types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
The snap ring groove is around the outside of the bearing and is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring

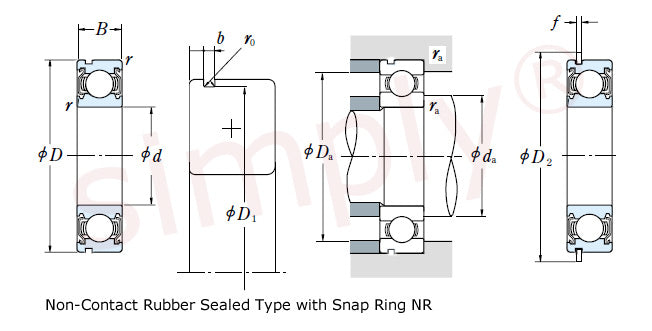

Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 12mm |
| r min | 0.6mm |
| Dynamic load Cr | 10100 N (1030 kgf) |
| Static load Cor | 5850 N (595 kgf) |
| Factor | 14.5 |
| Speed in grease | 15000 rpm |
| Speed in oil | 18000 rpm |
| a max | 2.06mm |
| b min | 1.35mm |
| D1 max | 44.6mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 52.7mm |
| f max | 1.12mm |
| da2 min | 29mm |
| da2max | 30mm |
| Da2max | 43mm |
| ra max | 0.6mm |
| Dx min | 53.5mm |
| Cy max | 2.9mm |
| Weight | 0.079 kg |
