SKU: 6004-2Z-KOY

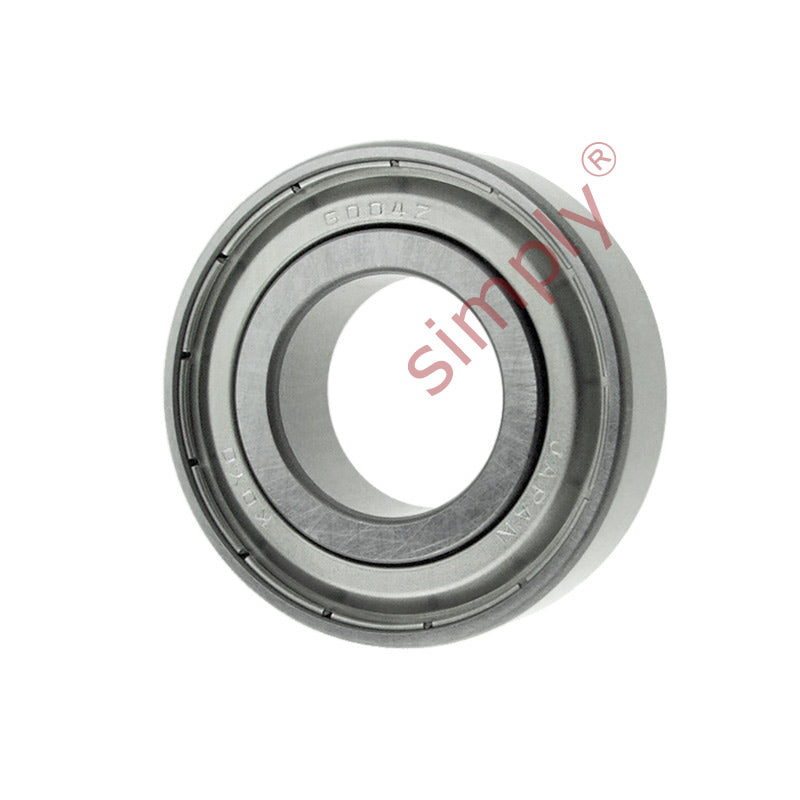

KOYO 60042Z Metal Shielded Deep Groove Ball Bearing 20x42x12mm
Equivalent to: 6004ZZE 60042Z 6004.2Z 6004KDD 6004DD 60042ZR 6004FF 6004Z
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
Technical
| Inside Diameter d | 20mm |
|---|---|
| Outside Diameter D | 42mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 9.4 kN |
| Static load | 5.05 kN |
| Max speed in oil | 21000 rpm |
| Max speed in grease | 10000 rpm |
