SKU: 6004-2RS/C3-KOY

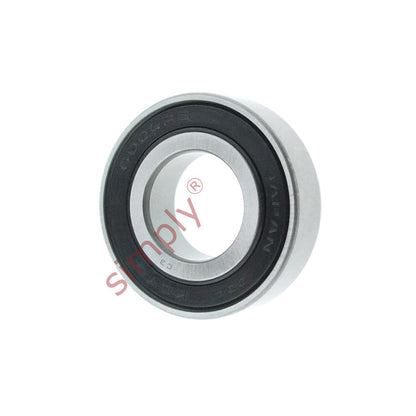

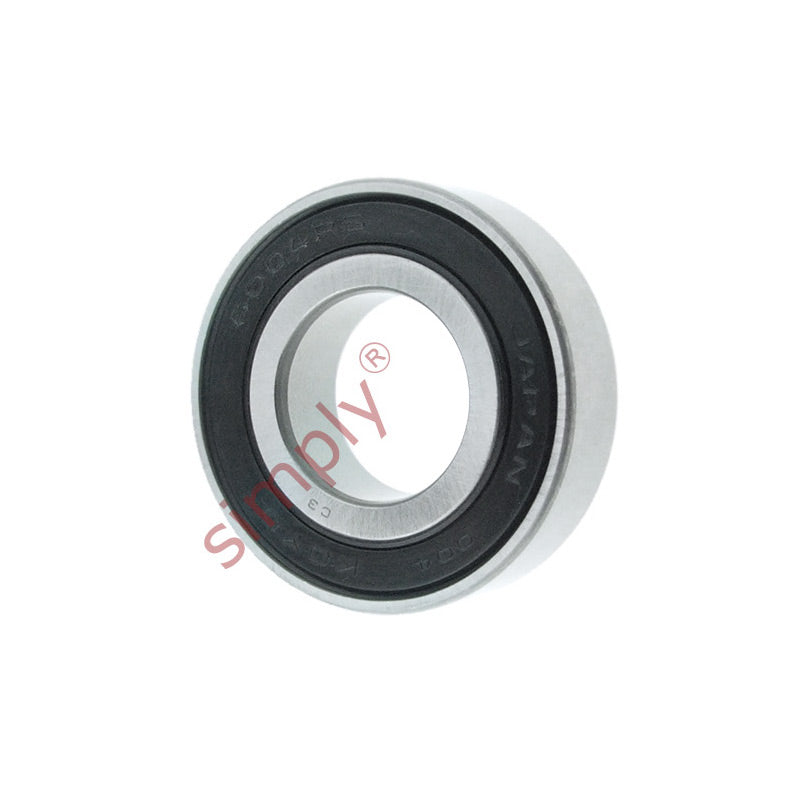

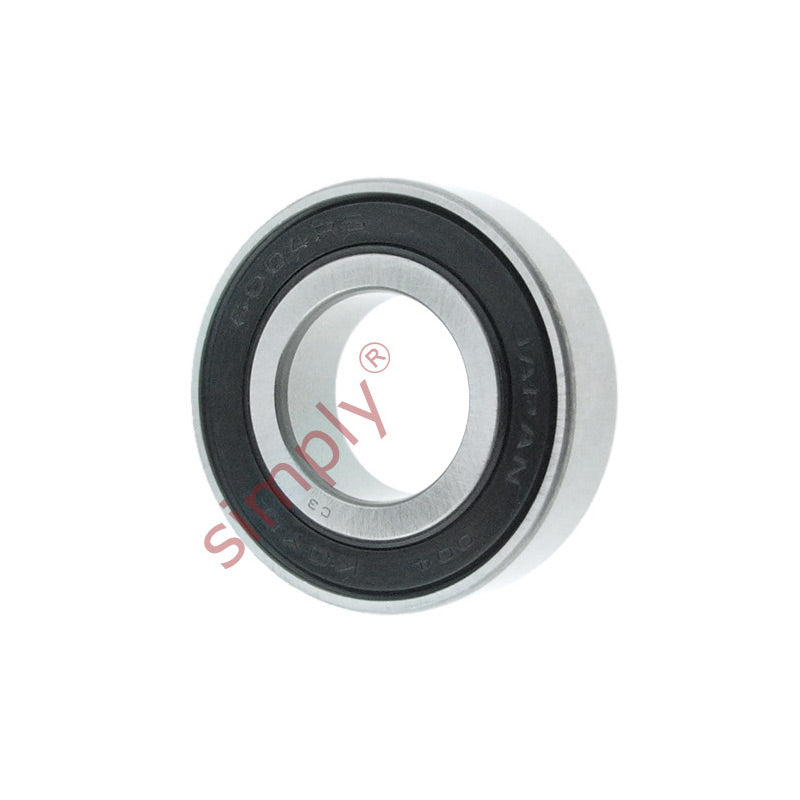

KOYO 60042RSC3 Rubber Sealed Deep Groove Ball Bearing 20x42x12mm
Equivalent to: 6004NSEC3 6004DUC3 6004RSC3 6004RSHC3 6004PC3 6004RSRC3 6004LUC3 60042NSEC3 6004DDUC3 60042RS1C3 60042RSHC3 6004PPC3 60042RSRC3 6004LLU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
KOYO Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| Inside Diameter d | 20mm |
|---|---|
| Outside Diameter D | 42mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 9.4 kN |
| Static load | 5.05 kN |
| Max speed in oil | 21000 rpm |
| Max speed in grease | 10000 rpm |
