SKU: 6003-2RS-CDX

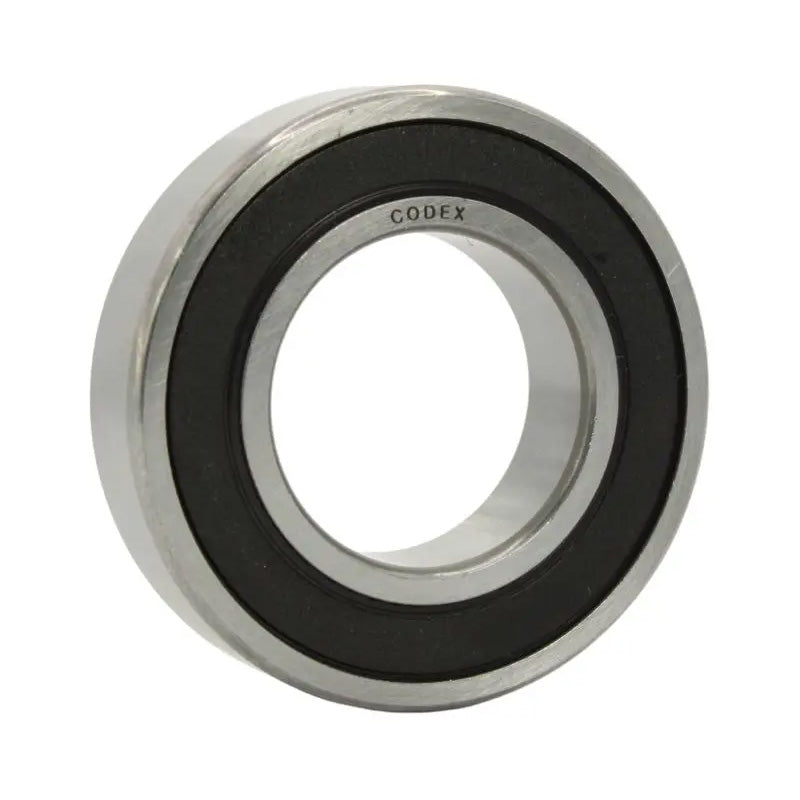

Codex 60032RS Rubber Sealed Deep Groove Ball Bearing 17x35x10mm
Codex 60032RS Rubber Sealed Deep Groove Ball Bearing 17x35x10mm
Regular price
€5,95
ex VAT
Regular price
Sale price
€5,95
ex VAT
Equivalent to: 60032RS 60032RSH 60032RS1 60032RSR 60032RSL 6003LFS 6003EE 6003DU 6003LLU EL172RS 6003PP 9103PP 103KSZZ 993L03 6103KK 10L17
In stock
Price Break
4+
€3,85
10+
€3,63
20+
€3,59
30+
€3,55
50+
€3,50
75+
€3,46
100+
€3,24
200+
€3,20
250+
€3,16
500+
€3,11
1000+
€3,03
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 10mm |
| Dynamic load C | 6.37 kN |
| Static load Co | 3.25 kN |
| Fatigue load limit Pu | 0.137 |
| Reference speed | 45000 rpm |
| Limiting speed | 13000 rpm |
| Weight | 0.039 kg |
| d1 | -mm |
| D2 | 31.4mm |
| r1r2 | 0.3mm |
| da min | 19mm |
| Da max | 33mm |
| ra max | 0.3mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 14 |
