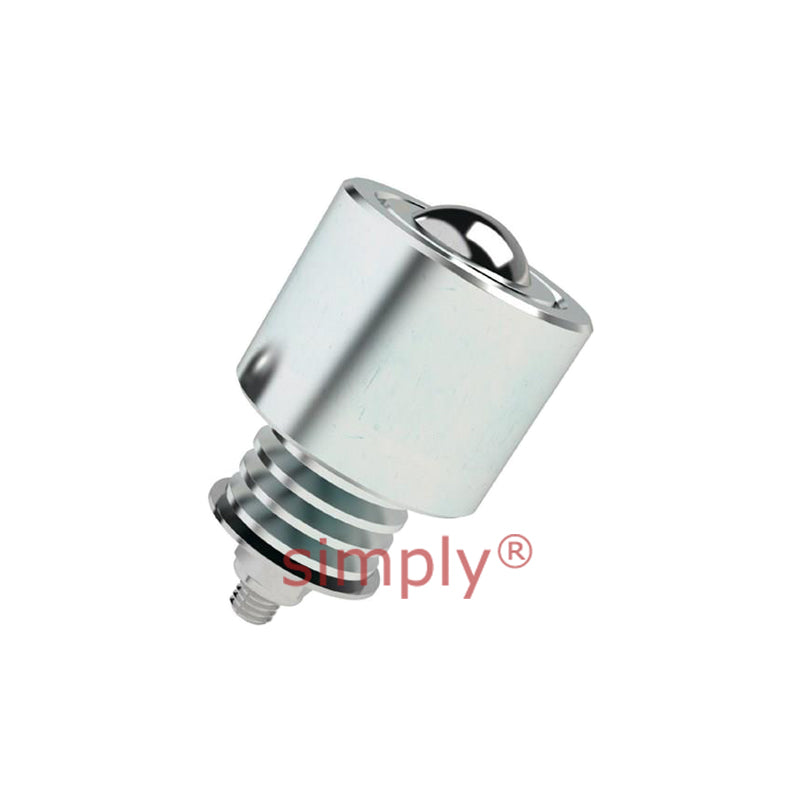

• High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 1525kg - Allow 2-3 Days
1 1

SKU: 570-521

High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 1525kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 1525kg - Allow 2-3 Days
€716,95 ex VAT
€716,95 ex VAT
Sale Sold out

In stock

Price Break
4+ €533,79
9+ €503,80
14+ €497,80
19+ €491,80
49+ €485,81
74+ €479,81
99+ €449,82
199+ €443,82
249+ €437,82
499+ €431,83
999+ €419,83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MVV64HPJSS
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
50.8mm
Technical
--- Dimensions
Ball Diameter 50.8mm
D 101.6mm
R 101.6mm
X 171.5mm
Y 200.8mm
Z 43.2mm
Max Deflection 6.3mm
--- Loads and Speeds
Supports Load 1525kg
Load to Max Deflection 2033kg
Weight 9.1 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo
