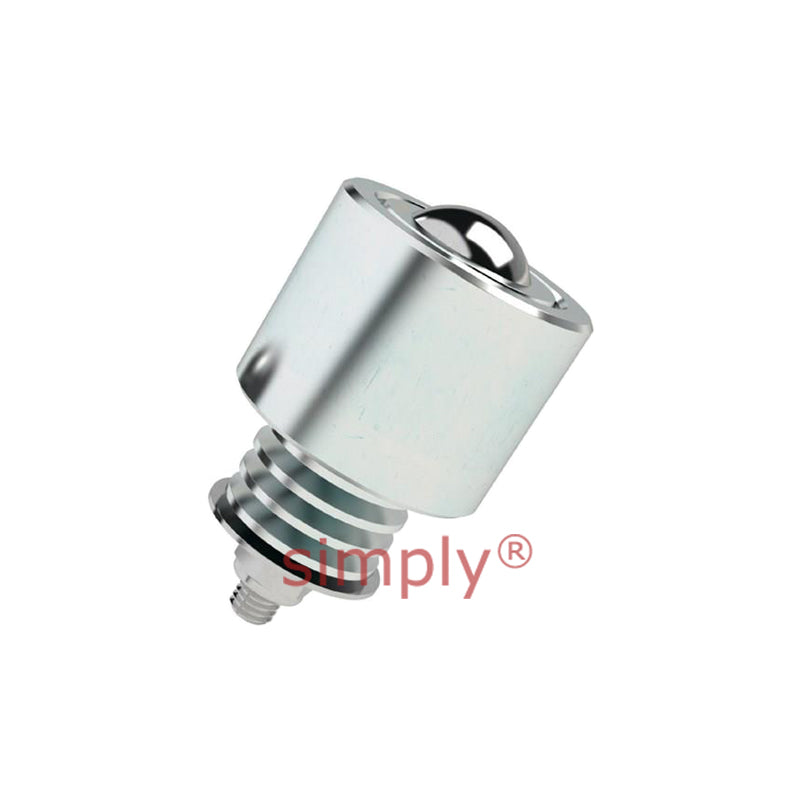

• High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 762kg - Allow 2-3 Days
1 1

SKU: 570-518

High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 762kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 762kg - Allow 2-3 Days
€695,95 ex VAT
€695,95 ex VAT
Sale Sold out

In stock

Price Break
4+ €518,09
9+ €488,98
14+ €483,16
19+ €477,34
49+ €471,52
74+ €465,70
99+ €436,59
199+ €430,77
249+ €424,95
499+ €419,13
999+ €407,48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MVV64HPJSS
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
50.8mm
Technical
--- Dimensions
Ball Diameter 50.8mm
D 101.6mm
R 101.6mm
X 179.4mm
Y 200.8mm
Z 43.2mm
Max Deflection 6.3mm
--- Loads and Speeds
Supports Load 762kg
Load to Max Deflection 1398kg
Weight 2.63 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo
