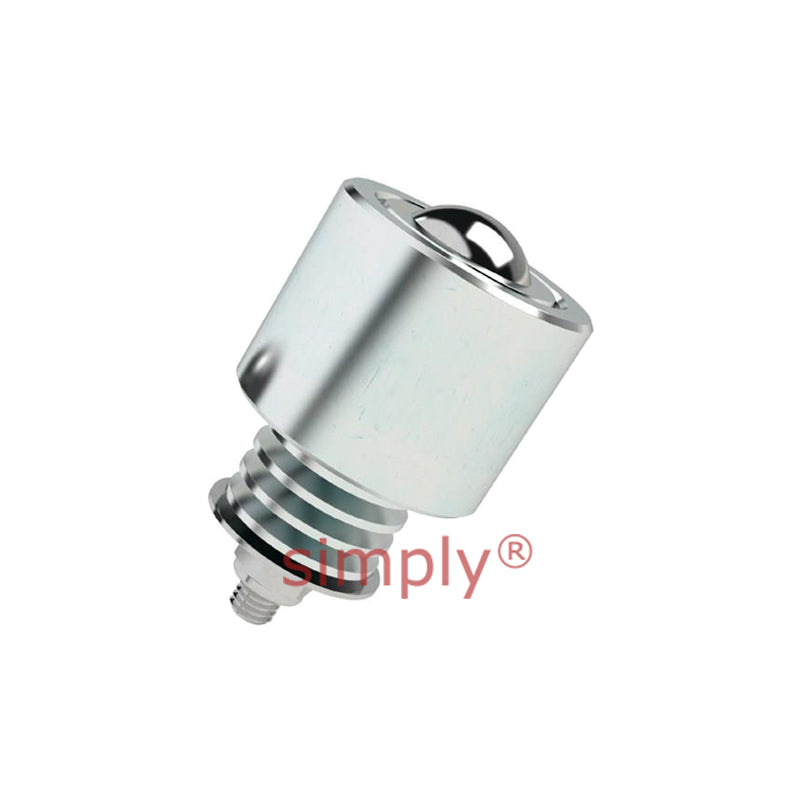

• High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 45kg - Allow 2-3 Days
1 1

SKU: 570-506A

High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 45kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 45kg - Allow 2-3 Days
€112,95 ex VAT
€112,95 ex VAT
Sale Sold out

In stock

Price Break
4+ €84,11
9+ €79,38
14+ €78,44
19+ €77,49
49+ €76,55
74+ €75,60
99+ €70,88
199+ €69,93
249+ €68,99
499+ €68,04
999+ €66,15

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
YO6RLGFF6Y
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
25.4mm
Technical
--- Dimensions
Ball Diameter 25.4mm
D 44.5mm
R 31.8mm
X 60.7mm
Y 77.2mm
Z 19.2mm
Max Deflection 3.2mm
--- Loads and Speeds
Supports Load 45kg
Load to Max Deflection 120kg
Weight 0.52 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: 420 Stainless Steel
