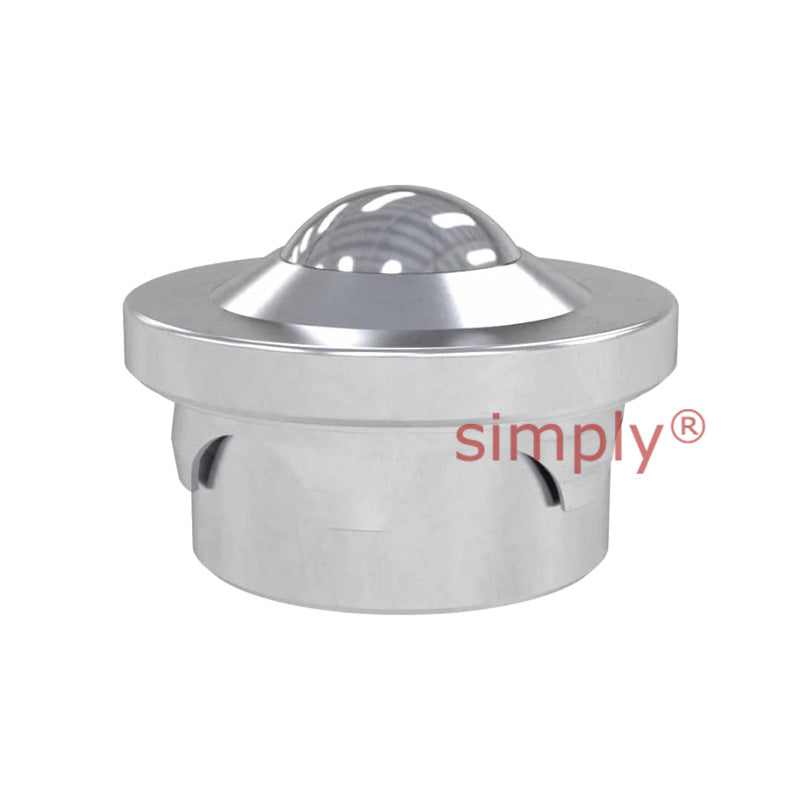

• High-Performance Medium Duty Ball Transfer Unit with 15.88mm Stainless Steel Ball - Load Capacity 40kg - Allow 2-3 Days
1 1

SKU: 569-6215

High-Performance Medium Duty Ball Transfer Unit with 15.88mm Stainless Steel Ball - Load Capacity 40kg - Allow 2-3 Days

High-Performance Medium Duty Ball Transfer Unit with 15.88mm Stainless Steel Ball - Load Capacity 40kg - Allow 2-3 Days
€27,95 ex VAT
€27,95 ex VAT
Sale Sold out

In stock

Price Break
4+ €20,97
9+ €19,79
14+ €19,56
19+ €19,32
49+ €19,09
74+ €18,85
99+ €17,67
199+ €17,44
249+ €17,20
499+ €16,96
999+ €16,49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
GESTV0CWNP

This ball transfer unit is supplied with a fixing clip. Fixing clips compensates variations in bore and diameter, making them particularly suitable for situations where access to only one side of the mounting surface is possible.

Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
15.88mm
Technical

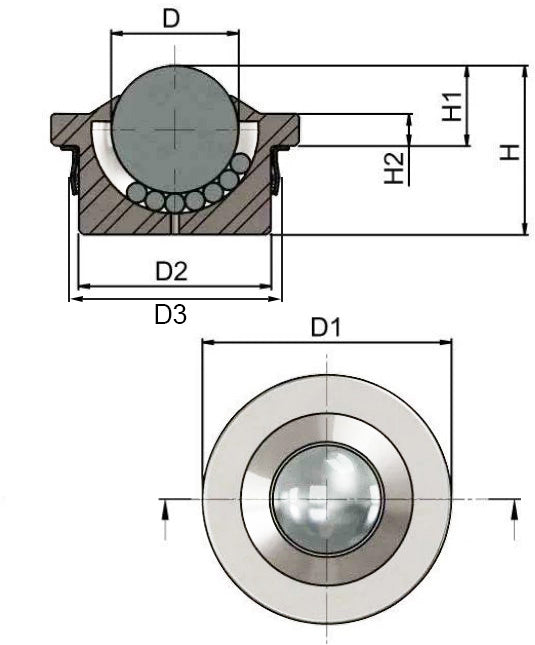

--- Dimensions
D 15.88mm
D1 31mm
D2 24mm
D3 (With Clip) 25mm
H 21mm
H1 10mm
H2 4mm
--- Loads and Speeds
Max Load 40 kg
Weight 0.07 kg
--- Materials
Material Body: 304 Stainless Steel<br>Ball: 402 Stainless Steel
