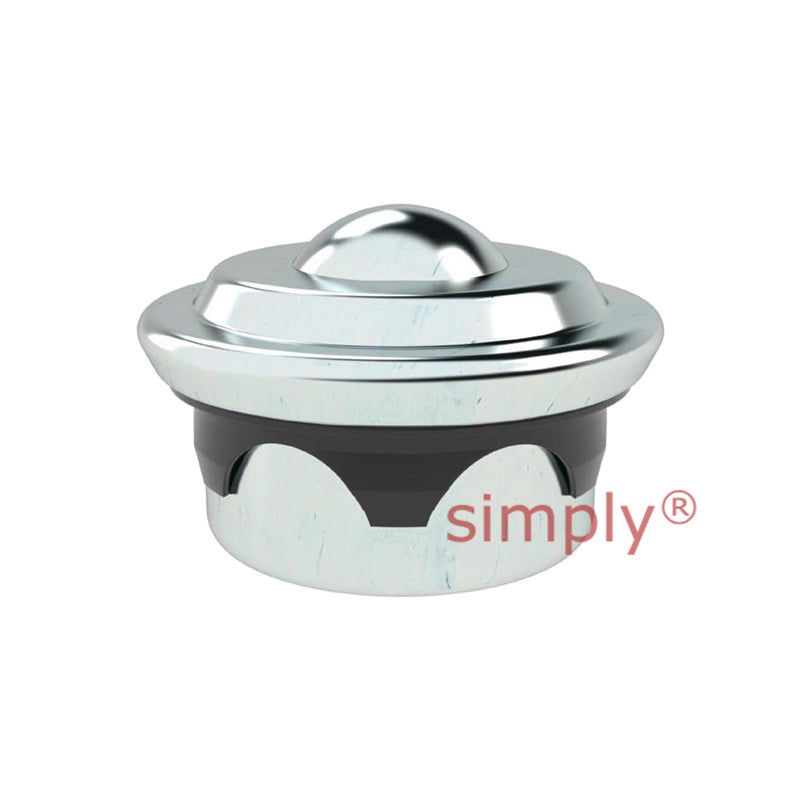

• High-Performance Light Duty Ball Transfer Unit with 15.88mm Stainless Steel Ball - Load Capacity 11.4kg - Allow 2-3 Days
1 1

SKU: 569-615

High-Performance Light Duty Ball Transfer Unit with 15.88mm Stainless Steel Ball - Load Capacity 11.4kg - Allow 2-3 Days

High-Performance Light Duty Ball Transfer Unit with 15.88mm Stainless Steel Ball - Load Capacity 11.4kg - Allow 2-3 Days
€14,95 ex VAT
€14,95 ex VAT
Sale Sold out

In stock

Price Break
4+ €10,75
9+ €10,14
14+ €10,02
19+ €9,90
49+ €9,78
74+ €9,66
99+ €9,06
199+ €8,94
249+ €8,81
499+ €8,69
999+ €8,45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LS8ICNYASC

This ball transfer unit is supplied with a fixing clip. Fixing clips compensates variations in bore and diameter, making them particularly suitable for situations where access to only one side of the mounting surface is possible.

Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
15.88mm
Technical

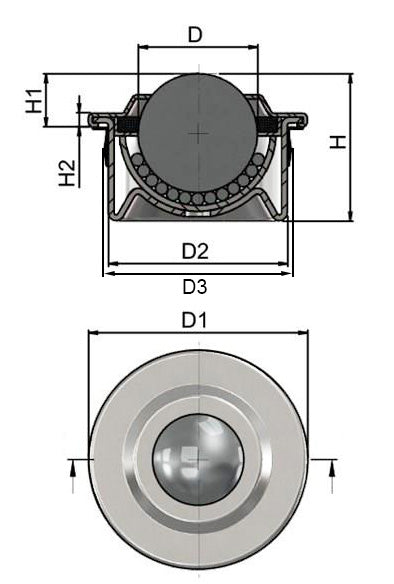

--- Dimensions
D 15.88mm
D1 32mm
D2 24mm
D3 (With Clip) 25/25.5mm
H 21mm
H1 9mm
H2 3mm
--- Loads and Speeds
Load Capacity 11.4 kg
Weight 0.05 kg
--- Materials
Material Body: 304 Stainless Steel<br>Ball: 402 Stainless Steel
