SKU: 54409-SKF

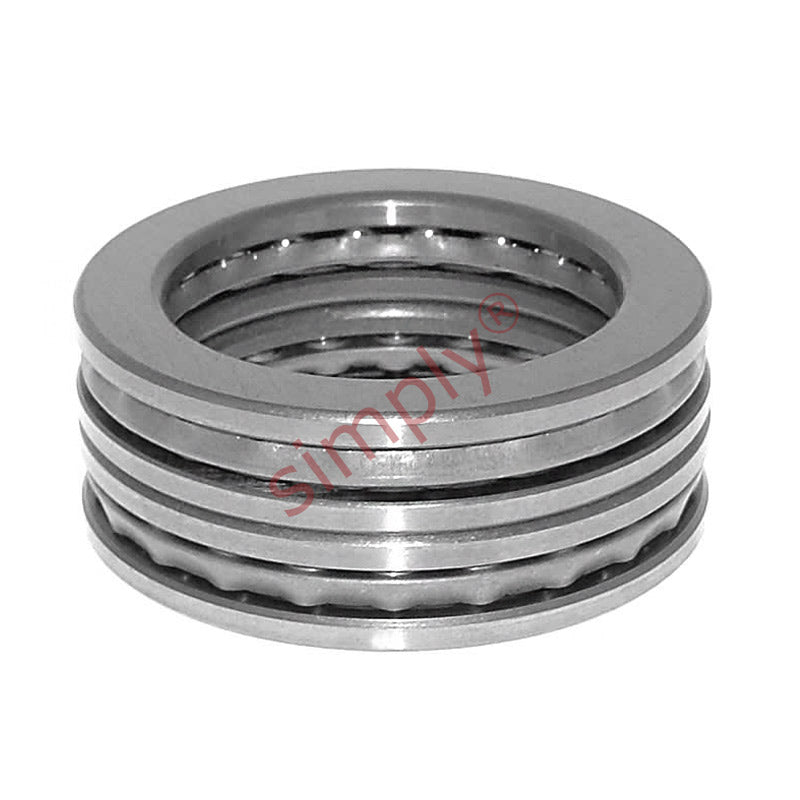

SKF 54409 Double Thrust Ball Bearing with Spherical Housing Washers 35x100x86mm

Name: SKF 54409 Double Thrust Ball Bearing with Spherical Housing Washers 35x100x86mm
Brand: SKF
SKU: 54409-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

Brand / Quality:: SKF - High Quality
Inside Diameter:: 35mm
Outside Diameter:: 100mm
Width:: 86mm

Technical

d	35mm
D	100mm
H1	86mm
Dynamic load C	130 kN
Static load Co	265 kN
Fatigue load limit Pu	9.8 kN
Minimum load factor A	0.37
Reference speed	2200 rpm
Limiting speed	3000 rpm
Weight	3 kg
Seating washer	U409
D1	47mm
D2	72mm
D3	105mm
H	78.9mm
B	17mm
C	12.5mm
R	80mm
s	23.5mm
r1r2	1.1mm
r3r4	0.6mm
da	45mm
Da max	72mm
ra max	1mm
rb max	0.6mm
