SKU: 50-2-SD-NO26-RENOLD
Renold SD 50-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Renold SD 50-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Regular price
€7,95
ex VAT
Regular price
Sale price
€7,95
ex VAT
In stock
Price Break
2+
€5,78
5+
€5,46
10+
€5,39
29+
€5,33
49+
€5,26
75+
€5,20
100+
€4,87
200+
€4,81
250+
€4,74
500+
€4,68
1000+
€4,55
Description
Description

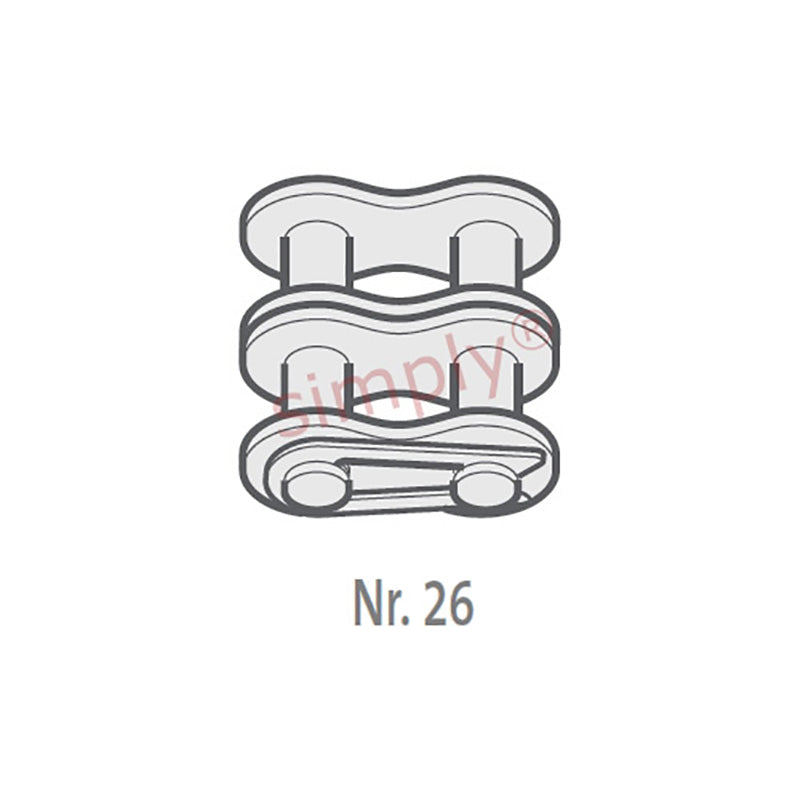

| Renold No. 26 ANSI Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 15.09mm |
| Plate Width Inner max (E) | 2mm |
| Plate Width Outer max (F) | 2mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 39mm |
| Connecting Link Extension max (J) | 1.3mm |
| Transverse Pitch nom (K) | 18.11mm |
| ISO606 Tensile Strength min | 43600 N |
| Weight | 0.01kg/m |
