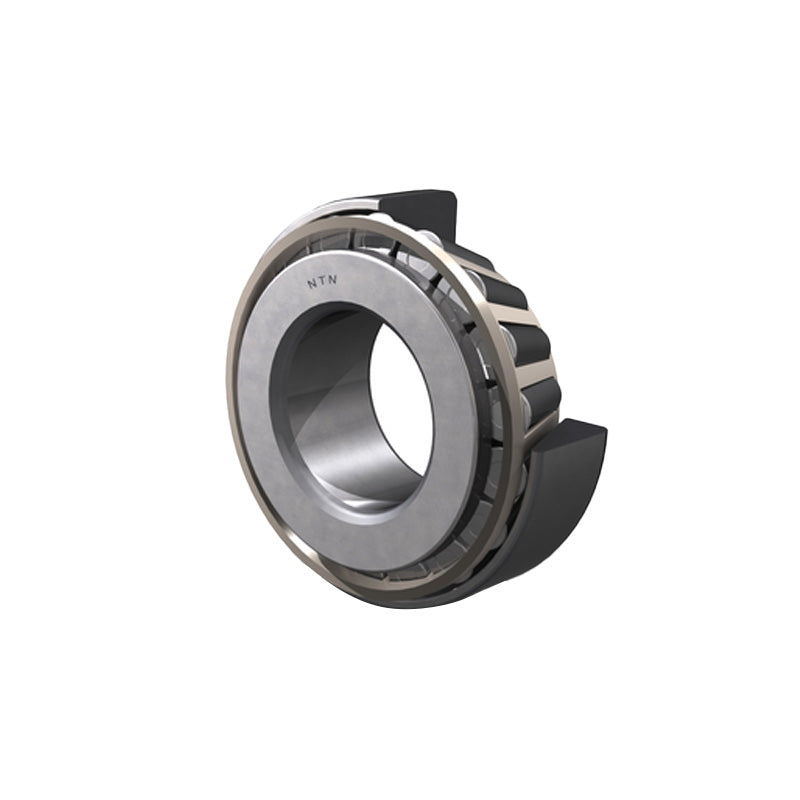

• NTN 4T-JH415647/JH415610 Tapered Roller Bearing Cup and Cone Set 2.953x5.709x2.008 inch
1 1

SKU: 4T-JH415647/JH415610-NTN

NTN 4T-JH415647/JH415610 Tapered Roller Bearing Cup and Cone Set 2.953x5.709x2.008 inch

NTN 4T-JH415647/JH415610 Tapered Roller Bearing Cup and Cone Set 2.953x5.709x2.008 inch
€256,95 ex VAT
€256,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €194,87
5+ €183,93
10+ €181,74
25+ €179,55
49+ €177,36
74+ €175,17
99+ €164,22
199+ €162,03
249+ €159,84
499+ €157,65
999+ €153,27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
R88H6LWMHL
Brand / Quality:
NTN - High Quality
Inside Diameter:
75mm
Outside Diameter:
145mm
Width:
51mm
Style:
Taper Roller Bearing
Technical
--- Bearing dimensions
d 2.953 inch (75mm)
D (inch) 5.709 inch (145mm)
T 2.008 inch (51mm)
B 2.008 inch (51.00mm)
C 1.65 inch (42.00mm)
--- Speeds and loads
C<sub>r</sub> 320kN
C<sub>or</sub> 410kN
Speed in grease 2500rpm
Speed in oil 3400rpm
--- Abutment dimensions
d<sub>a</sub> 94mm
d<sub>b</sub> 89mm
D<sub>a</sub> 129mm
D<sub>b</sub> 139mm
r<sub>as</sub> max 3mm
r<sub>1as</sub> max 2.5mm
Load center<sup>2</sup> 14.1mm
Constant e 0.36
Axial load factor Y<sub>2</sub> 1.66
Axial load factor Y<sub>0</sub> 0.91
Weight 3.82kg
