• NTN 4T-6460/6420 Tapered Roller Bearing Cup and Cone Set 2.875x5.875x2.125 inch
1 1

SKU: 4T-6460/6420-NTN

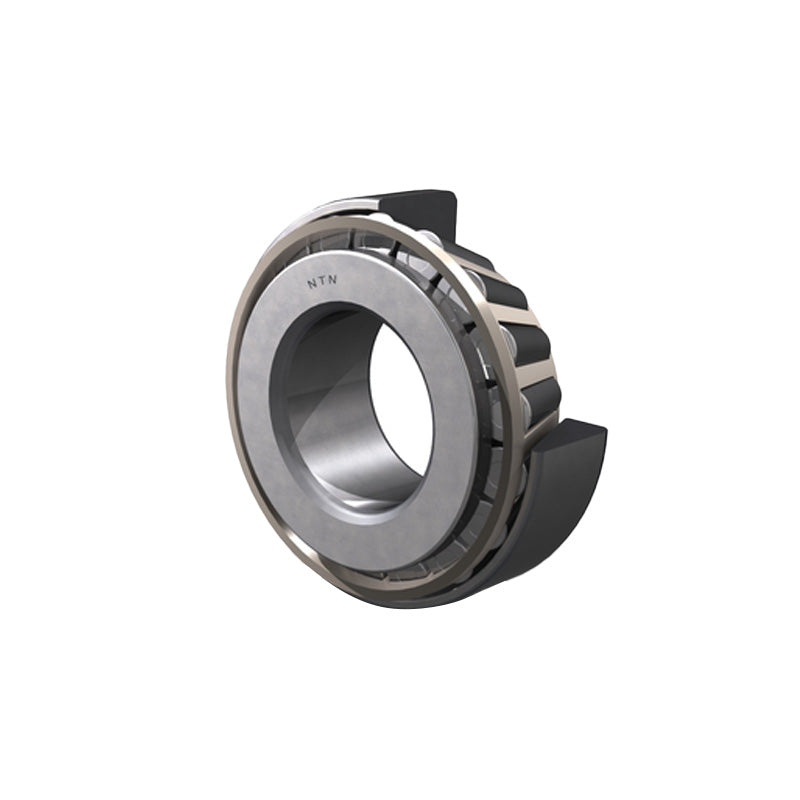

NTN 4T-6460/6420 Tapered Roller Bearing Cup and Cone Set 2.875x5.875x2.125 inch

NTN 4T-6460/6420 Tapered Roller Bearing Cup and Cone Set 2.875x5.875x2.125 inch
€334,95 ex VAT
€334,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €253,82
5+ €239,56
10+ €236,71
25+ €233,86
49+ €231,00
74+ €228,15
99+ €213,89
199+ €211,04
249+ €208,19
499+ €205,34
999+ €199,63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
R88H6LWMHL
Brand / Quality:
NTN - High Quality
Inside Diameter:
73.03mm = 2.875 (2-7/8) inch
Outside Diameter:
149.23mm = 5.875 (5-7/8) inch
Width:
53.98mm = 2.125 (2-1/8) inch
Style:
Taper Roller Bearing
Technical
--- Bearing dimensions
d 2.875 inch (73.025mm)
D (inch) 5.875 inch (149.225mm)
T 2.125 inch (53.975mm)
B 2.135 inch (54.229mm)
C 1.75 inch (44.45mm)
--- Speeds and loads
C<sub>r</sub> 320kN
C<sub>or</sub> 410kN
Speed in grease 2500rpm
Speed in oil 3400rpm
--- Abutment dimensions
d<sub>a</sub> 93mm
d<sub>b</sub> 87mm
D<sub>a</sub> 129mm
D<sub>b</sub> 140mm
r<sub>as</sub> max 3.5mm
r<sub>1as</sub> max 3.3mm
Load center<sup>2</sup> 14.8mm
Constant e 0.36
Axial load factor Y<sub>2</sub> 1.66
Axial load factor Y<sub>0</sub> 0.91
Weight 4.43kg
