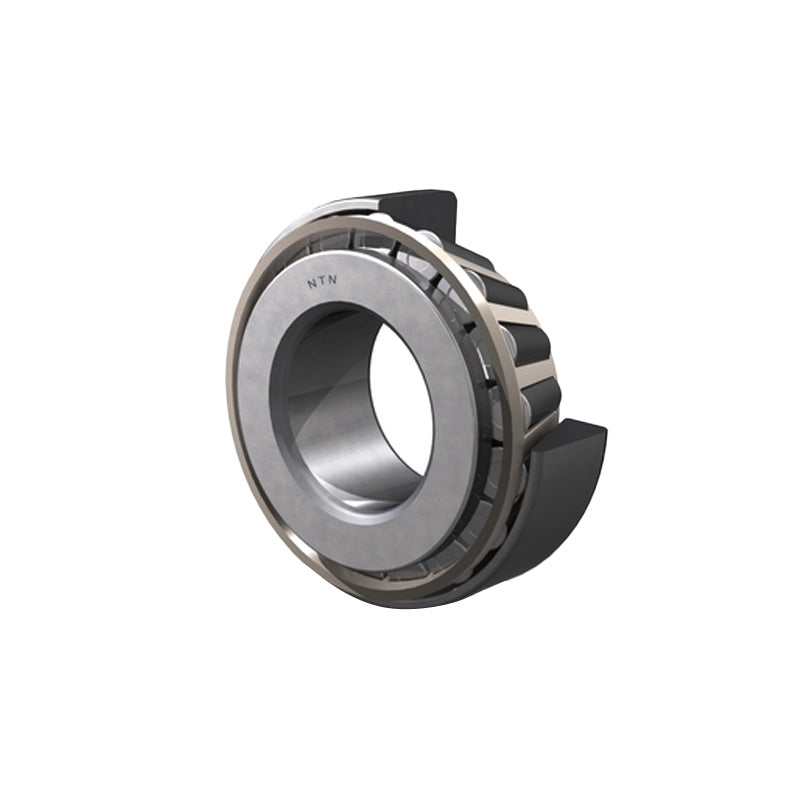

• NTN 4T-365/362A Tapered Roller Bearing Cup and Cone Set 1.969x3.5x0.813 inch
1 1

SKU: 4T-365/362A-NTN

NTN 4T-365/362A Tapered Roller Bearing Cup and Cone Set 1.969x3.5x0.813 inch

NTN 4T-365/362A Tapered Roller Bearing Cup and Cone Set 1.969x3.5x0.813 inch
€60,95 ex VAT
€60,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €45,65
5+ €43,08
10+ €42,57
25+ €42,06
49+ €41,54
74+ €41,03
99+ €38,47
199+ €37,95
249+ €37,44
499+ €36,93
999+ €35,90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
R88H6LWMHL
Brand / Quality:
NTN - High Quality
Inside Diameter:
50mm = 1.969 (1-31/32) inch
Outside Diameter:
88.9mm = 3.5 (3-1/2) inch
Width:
20.64mm = 0.813 (13/16) inch
Style:
Taper Roller Bearing
Technical
--- Bearing dimensions
d 1.969 inch (50mm)
D (inch) 3.5 inch (88.9mm)
T 0.813 inch (20.638mm)
B 0.875 inch (22.225mm)
C 0.65 inch (16.513mm)
--- Speeds and loads
C<sub>r</sub> 85kN
C<sub>or</sub> 90.5kN
Speed in grease 4100rpm
Speed in oil 5500rpm
--- Abutment dimensions
d<sub>a</sub> 58mm
d<sub>b</sub> 55mm
D<sub>a</sub> 81mm
D<sub>b</sub> 84mm
r<sub>as</sub> max 2mm
r<sub>1as</sub> max 1.3mm
Load center<sup>2</sup> 4mm
Constant e 0.32
Axial load factor Y<sub>2</sub> 1.88
Axial load factor Y<sub>0</sub> 1.03
Weight 0.534kg
