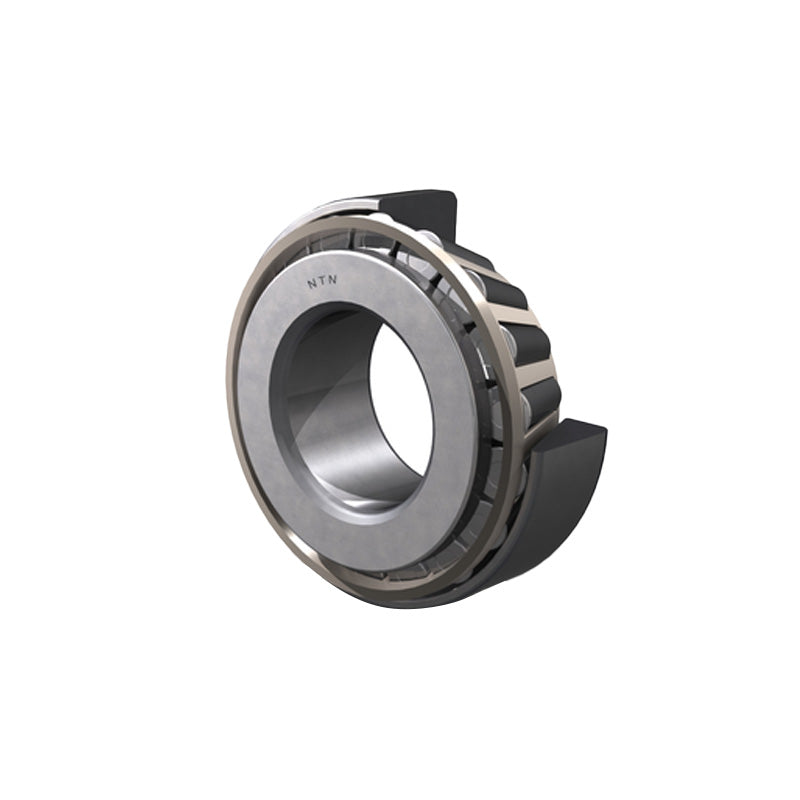

• NTN 4T-33207 Tapered Roller Bearing Cup and Cone Set 35x72x28mm
1 1

SKU: 4T-33207-NTN

NTN 4T-33207 Tapered Roller Bearing Cup and Cone Set 35x72x28mm

NTN 4T-33207 Tapered Roller Bearing Cup and Cone Set 35x72x28mm
€44,95 ex VAT
€44,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €33,59
5+ €31,70
10+ €31,32
25+ €30,95
49+ €30,57
74+ €30,19
99+ €28,31
199+ €27,93
249+ €27,55
499+ €27,17
999+ €26,42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FMYNRUNSLU
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
72mm
Width:
28mm
Style:
Taper Roller Bearing
Technical
--- Bearing dimensions
d 35mm
D 72mm
T 28mm
B 28mm
C 22mm
r<sub>s</sub> min 1.5mm
r<sub>ls</sub> min 1.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 97kN
Static load C<sub>or</sub> 109kN
Allowable Speed in grease 5500rpm
Allowable Speed in oil 7400rpm
--- Abutment dimensions
ISO Dimension series 2DE
d<sub>a</sub> min 43.5mm
d<sub>b</sub> max 42mm
D<sub>a</sub> max 63.5mm
D<sub>a</sub> min 58mm
D<sub>b</sub> min 68.5mm
S<sub>a</sub> min 5mm
S<sub>b</sub> min 6mm
r<sub>as</sub> max 1.5mm
r<sub>1as</sub> max 1.5mm
Load center a 18.5mm
Constant e 0.35mm
Y<sub>2</sub> 1.7mm
Y<sub>0</sub> 0.93mm
Weight 0.539kg
