SKU: 4T-33110-NTN

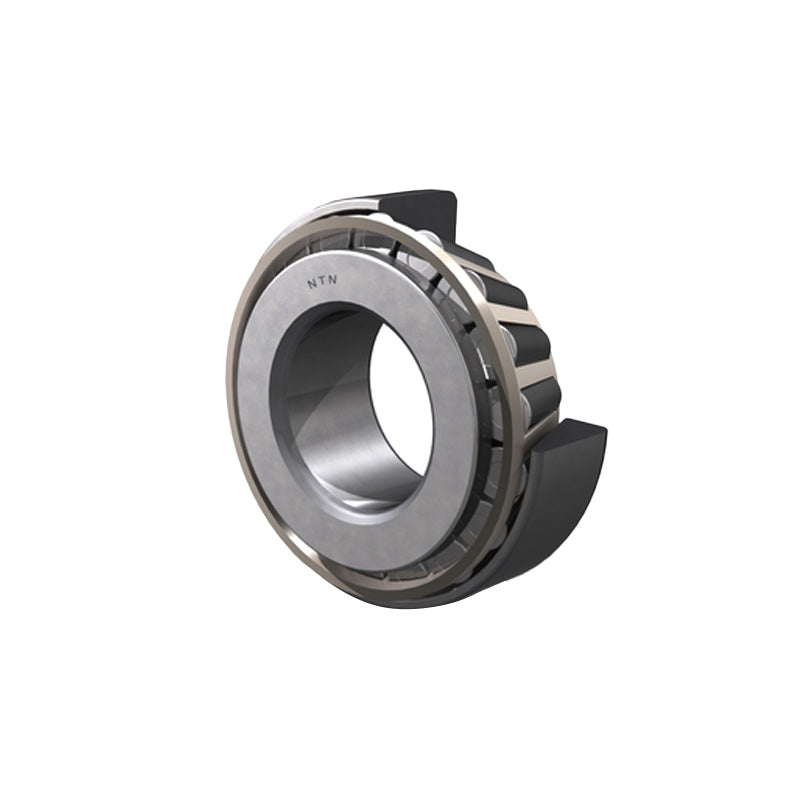

NTN 4T-33110 Tapered Roller Bearing Cup and Cone Set 50x85x26mm

NTN 4T-33110 Tapered Roller Bearing Cup and Cone Set 50x85x26mm
Regular price €40,95 ex VAT
Regular price Sale price €40,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €30,76
5+ €29,03
10+ €28,68
25+ €28,34
49+ €27,99
74+ €27,65
99+ €25,92
199+ €25,57
249+ €25,23
499+ €24,88
999+ €24,19
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 50mm
D 85mm
T 26mm
B 26mm
C 20mm
r<sub>s</sub> min 1.5mm
r<sub>ls</sub> min 1.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 96kN
Static load C<sub>or</sub> 121kN
Allowable Speed in grease 4200rpm
Allowable Speed in oil 5600rpm
--- Abutment dimensions
ISO Dimension series 3CE
d<sub>a</sub> min 58.5mm
d<sub>b</sub> max 56.5mm
D<sub>a</sub> max 76.5mm
D<sub>a</sub> min 71mm
D<sub>b</sub> min 81.5mm
S<sub>a</sub> min 4mm
S<sub>b</sub> min 6mm
r<sub>as</sub> max 1.5mm
r<sub>1as</sub> max 1.5mm
Load center a 20.5mm
Constant e 0.41mm
Y<sub>2</sub> 1.46mm
Y<sub>0</sub> 0.8mm
Weight 0.583kg
