SKU: 4T-32011X-NTN

NTN 4T-32011X Tapered Roller Bearing Cup and Cone Set 55x90x23mm

NTN 4T-32011X Tapered Roller Bearing Cup and Cone Set 55x90x23mm
Regular price €39,95 ex VAT
Regular price Sale price €39,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €29,84
5+ €28,17
10+ €27,83
25+ €27,49
49+ €27,16
74+ €26,82
99+ €25,15
199+ €24,81
249+ €24,48
499+ €24,14
999+ €23,47
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

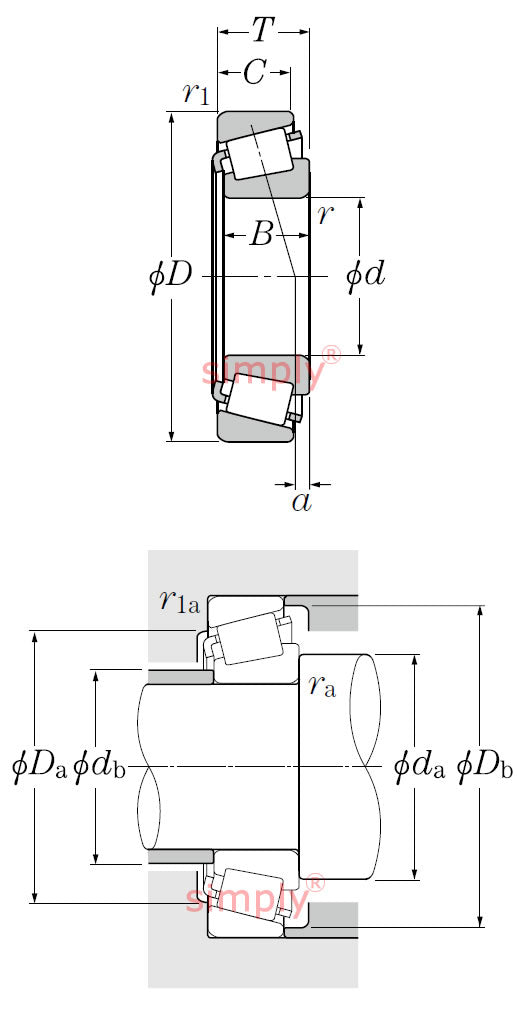

--- Bearing dimensions
d 55mm
D 90mm
T 23mm
B 23mm
C 17.5mm
r<sub>s</sub> min 1.5mm
r<sub>ls</sub> min 1.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 89kN
Static load C<sub>or</sub> 118kN
Allowable Speed in grease 4000rpm
Allowable Speed in oil 5400rpm
--- Abutment dimensions
ISO Dimension series 3CC
d<sub>a</sub> min 63.5mm
d<sub>b</sub> max 63mm
D<sub>a</sub> max 81.5mm
D<sub>a</sub> min 77.5mm
D<sub>b</sub> min 87mm
S<sub>a</sub> min 4mm
S<sub>b</sub> min 5.5mm
r<sub>as</sub> max 1.5mm
r<sub>1as</sub> max 1.5mm
Load center a 20mm
Constant e 0.41mm
Y<sub>2</sub> 1.48mm
Y<sub>0</sub> 0.81mm
Weight 0.56kg
