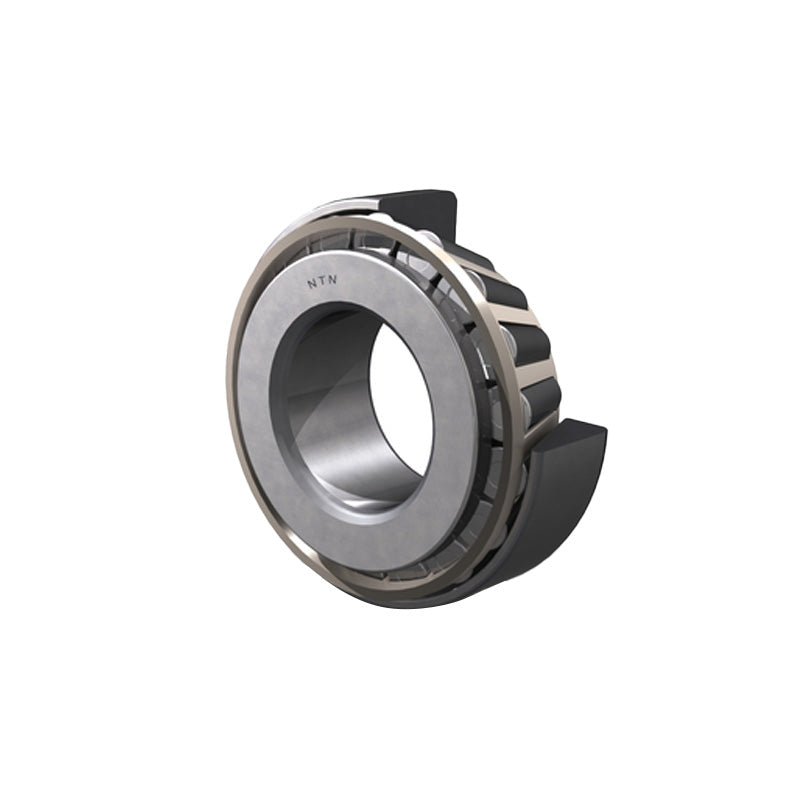

• NTN 4T-15590/15523 Tapered Roller Bearing Cup and Cone Set 1.125x2.375x0.781 inch
1 1

SKU: 4T-15590/15523-NTN

NTN 4T-15590/15523 Tapered Roller Bearing Cup and Cone Set 1.125x2.375x0.781 inch

NTN 4T-15590/15523 Tapered Roller Bearing Cup and Cone Set 1.125x2.375x0.781 inch
€36,95 ex VAT
€36,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €27,83
5+ €26,27
10+ €25,95
25+ €25,64
49+ €25,33
74+ €25,02
99+ €23,45
199+ €23,14
249+ €22,83
499+ €22,51
999+ €21,89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
R88H6LWMHL
Brand / Quality:
NTN - High Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Outside Diameter:
60.33mm = 2.375 (2-3/8) inch
Width:
19.84mm = 0.781 (25/32) inch
Style:
Taper Roller Bearing
Technical
--- Bearing dimensions
d 1.125 inch (28.575mm)
D (inch) 2.375 inch (60.325mm)
T 0.781 inch (19.842mm)
B 0.687 inch (17.462mm)
C 0.63 inch (15.875mm)
--- Speeds and loads
C<sub>r</sub> 44kN
C<sub>or</sub> 45.5kN
Speed in grease 6700rpm
Speed in oil 8900rpm
--- Abutment dimensions
d<sub>a</sub> 39.5mm
d<sub>b</sub> 33.5mm
D<sub>a</sub> 51mm
D<sub>b</sub> 54mm
r<sub>as</sub> max 3.5mm
r<sub>1as</sub> max 1.5mm
Load center<sup>2</sup> 5mm
Constant e 0.35
Axial load factor Y<sub>2</sub> 1.73
Axial load factor Y<sub>0</sub> 0.95
Weight 0.25kg
