• NTN 4T-15117/15244 Tapered Roller Bearing Cup and Cone Set 1.181x2.44x0.81 inch
1 1

SKU: 4T-15117/15244-NTN

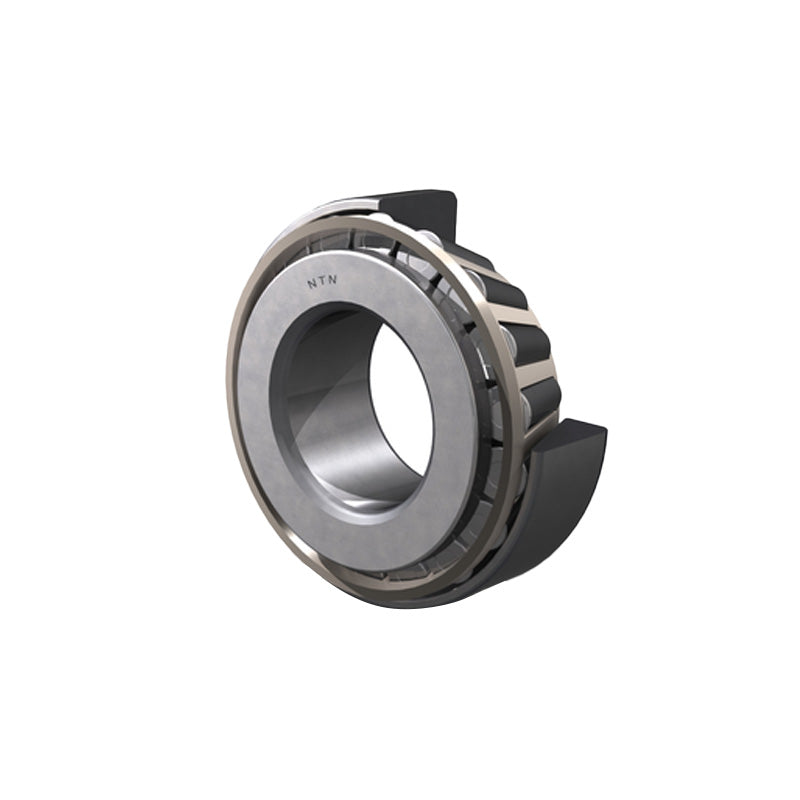

NTN 4T-15117/15244 Tapered Roller Bearing Cup and Cone Set 1.181x2.44x0.81 inch

NTN 4T-15117/15244 Tapered Roller Bearing Cup and Cone Set 1.181x2.44x0.81 inch
€46,95 ex VAT
€46,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €35,23
5+ €33,25
10+ €32,85
25+ €32,46
49+ €32,06
74+ €31,66
99+ €29,69
199+ €29,29
249+ €28,89
499+ €28,50
999+ €27,71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
R88H6LWMHL
Brand / Quality:
NTN - High Quality
Inside Diameter:
29.99mm = 1.181 inch
Outside Diameter:
62mm = 2.441 inch
Width:
20.64mm = 0.813 (13/16) inch
Style:
Taper Roller Bearing
Technical
--- Bearing dimensions
d 1.181 inch (29.987mm)
D (inch) 2.44 inch (62mm)
T 0.81 inch (20.638mm)
B 0.81 inch (20.638mm)
C 0.63 inch (15.875mm)
--- Speeds and loads
C<sub>r</sub> 46.5kN
C<sub>or</sub> 54kN
r<sub>as</sub> max 1.3mm
r<sub>1as</sub> max 1.3mm
Weight 0.27kg
