• NTN 4T-02476/02420 Tapered Roller Bearing Cup and Cone Set 1.25x2.687x0.875 inch
1 1

SKU: 4T-02476/02420-NTN

NTN 4T-02476/02420 Tapered Roller Bearing Cup and Cone Set 1.25x2.687x0.875 inch

NTN 4T-02476/02420 Tapered Roller Bearing Cup and Cone Set 1.25x2.687x0.875 inch
€43,95 ex VAT
€43,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €32,83
5+ €30,99
10+ €30,62
25+ €30,25
49+ €29,88
74+ €29,51
99+ €27,67
199+ €27,30
249+ €26,93
499+ €26,56
999+ €25,82

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
R88H6LWMHL
Brand / Quality:
NTN - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Outside Diameter:
68.26mm = 2.687 (2-11/16) inch
Width:
22.23mm = 0.875 (7/8) inch
Style:
Taper Roller Bearing

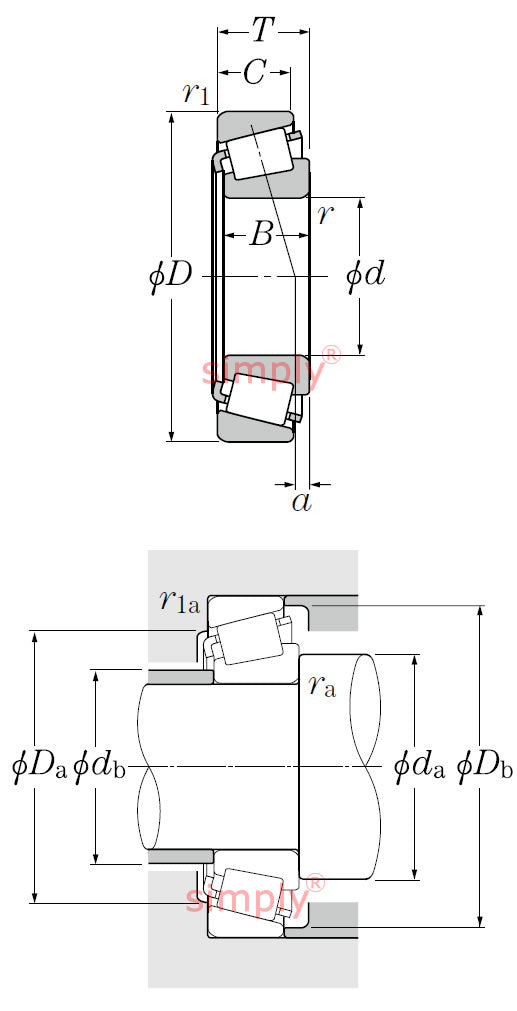

Technical
--- Bearing dimensions
d 1.25 inch (31.75mm)
D (inch) 2.687 inch (68.262mm)
T 0.875 inch (22.225mm)
B 0.875 inch (22.225mm)
C 0.69 inch (17.462mm)
--- Speeds and loads
C<sub>r</sub> 63kN
C<sub>or</sub> 67kN
Speed in grease 5800rpm
Speed in oil 7700rpm
--- Abutment dimensions
d<sub>a</sub> 39mm
d<sub>b</sub> 38.5mm
D<sub>a</sub> 59mm
D<sub>b</sub> 63mm
r<sub>as</sub> max 0.8mm
r<sub>1as</sub> max 1.5mm
Load center<sup>2</sup> 5.2mm
Constant e 0.42
Axial load factor Y<sub>2</sub> 1.44
Axial load factor Y<sub>0</sub> 0.79
Weight 0.384kg
