SKU: 42362D/42584/Y3S-42584-TIM

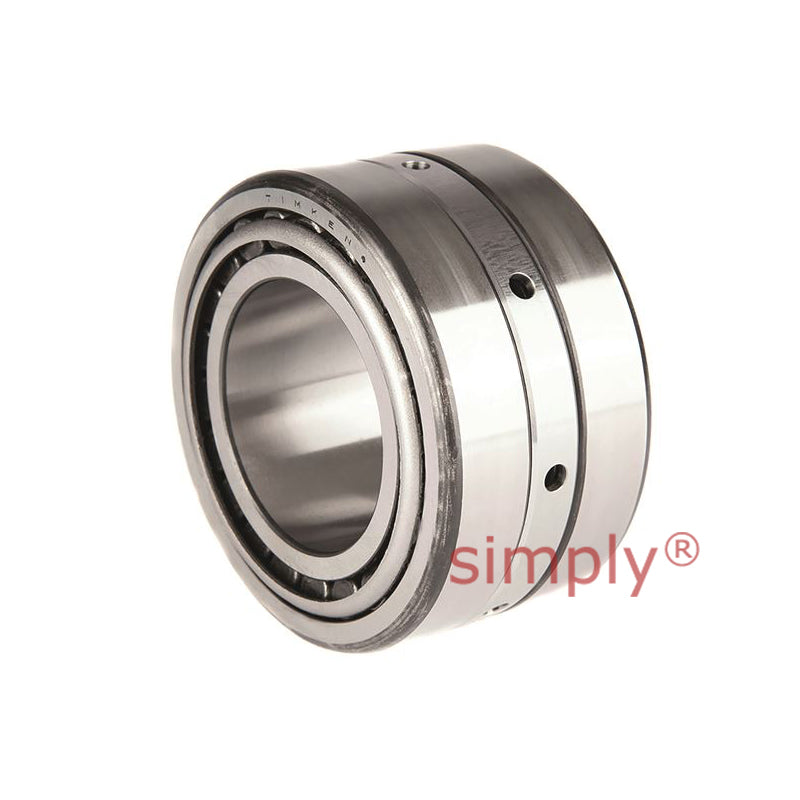

Timken 42362D/42584/Y3S-42584 TDI Double Inner Race Taper Roller Bearing 3.625x5.8437x2.25x2.2812 inch
Timken 42362D/42584/Y3S-42584 TDI Double Inner Race Taper Roller Bearing 3.625x5.8437x2.25x2.2812 inch
Out of stock
Description
Description

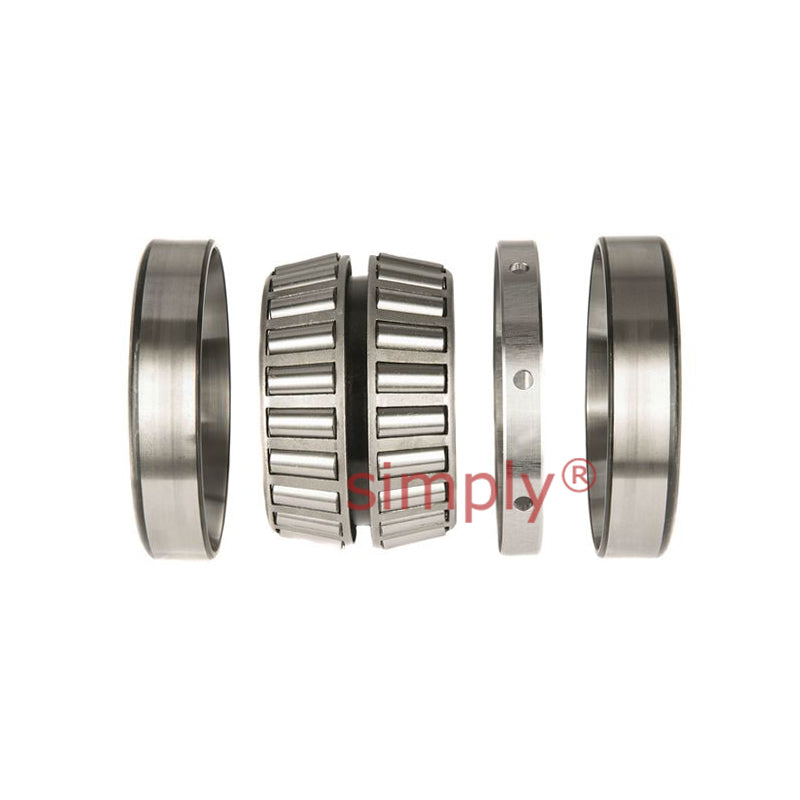

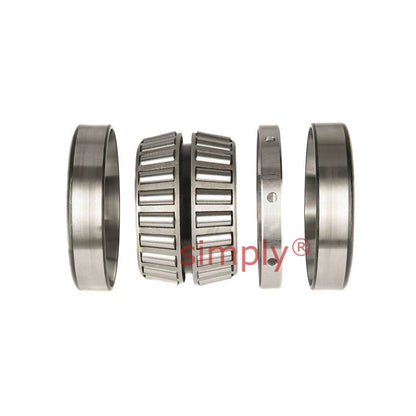

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 92.08mm = 3.625 (3-5/8) inch
- Outside Diameter:
- 148.43mm = 5.844 (5-27/32) inch
- Width:
- 57.15mm = 2.25 (2-1/4) inch
Technical
Technical
| d | 92.075mm = 3.625 inch |
|---|---|
| D | 148.43mm = 5.8437 inch |
| T | 57.15mm = 2.25 inch |
| C | 57.942mm = 2.2812 inch |
| Dynamic (1) C1 | 263000N |
| Factors (5) e | 0.49 |
| Factors (5) Y1 | 1.37 |
| Factors (5) Y2 | 2.04 |
| Dynamic (2) C90 | 39100N |
| Dynamic (2) Ca90 | 33000N |
| Dynamic (2) C90(2) | 68100N |
| Factors (5) K | 1.19 |
| Shaft max shaft fillet radius R (3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 103mm = 4.06 inch |
| Housing max shaft fillet radius r (3) | 3mm = 0.12 inch |
| Housing backing shoulder diameter Db | 134mm = 5.28 inch |
| G1 | 130 |
| G2 | 37.2 |
| Cg | 0.1386 |
