SKU: 40-A-30-08-ROLL-REN
Renold 30 Tooth 40-A Roll Ring for 1/2 inch Pitch - Ambient Temperature -22 to+122°F
Renold 30 Tooth 40-A Roll Ring for 1/2 inch Pitch - Ambient Temperature -22 to+122°F
Out of stock
Description
Description
|

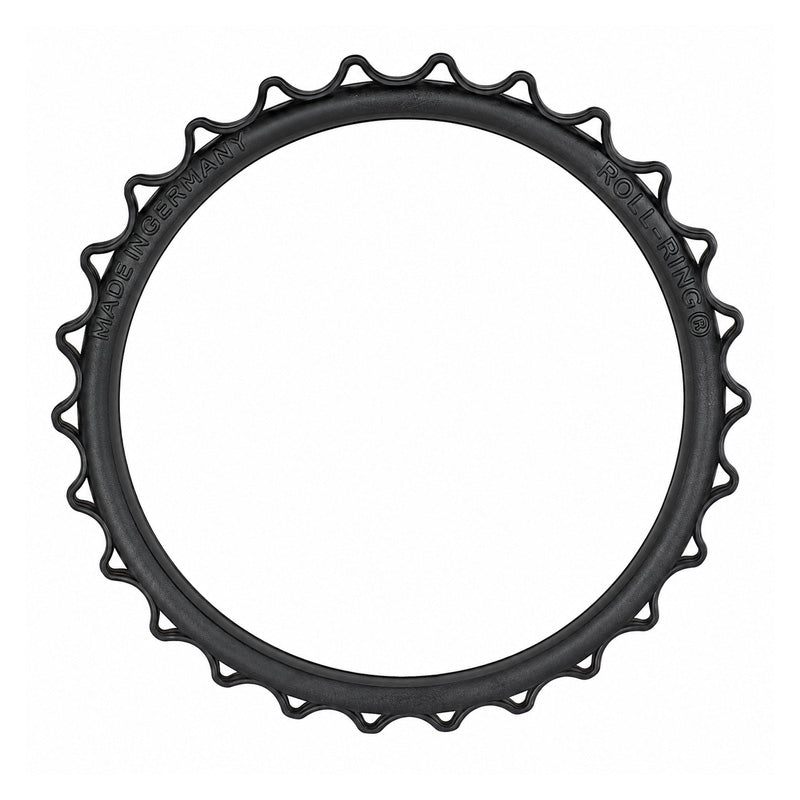

Renold Roll Ring: The ROLL-RING® is designed to deform to an elliptical shape, when the drive is in use. This is due to ROLL-RING® being compressed completely absorbs any slack in the system. ROLL-RING® chain tensioners are maintenance free and can be fitted to a wide variety of chain drives with no installation downtime. The ROLL-RING® has been modified to requirements of cold temperatures for flexibility and intensified damping characteristics. |
- Brand / Quality:
- Renold - High Quality
- Teeth:
- 30
- Pitch:
- 1/2 inches
Technical
Technical
| do | 4.783 inch |
|---|---|
| di | 4 inch |
| s | 1.181 inch |
| A | 6.362 inch |
| D = do-s | 3.602 inch |
| Chain Dimension - p x b1- inches | 1/2 x 3/4/6mm |
| Max Static Expansive Force - lbs** | 2.81 |
| Maximum Chain Speed ft/min | 1575 |
| Ambient Temperature (°F) | -22 to+122 |
| Weight (lbs) | 0.035 |
