SKU: 3807.B.2RSR.TVH

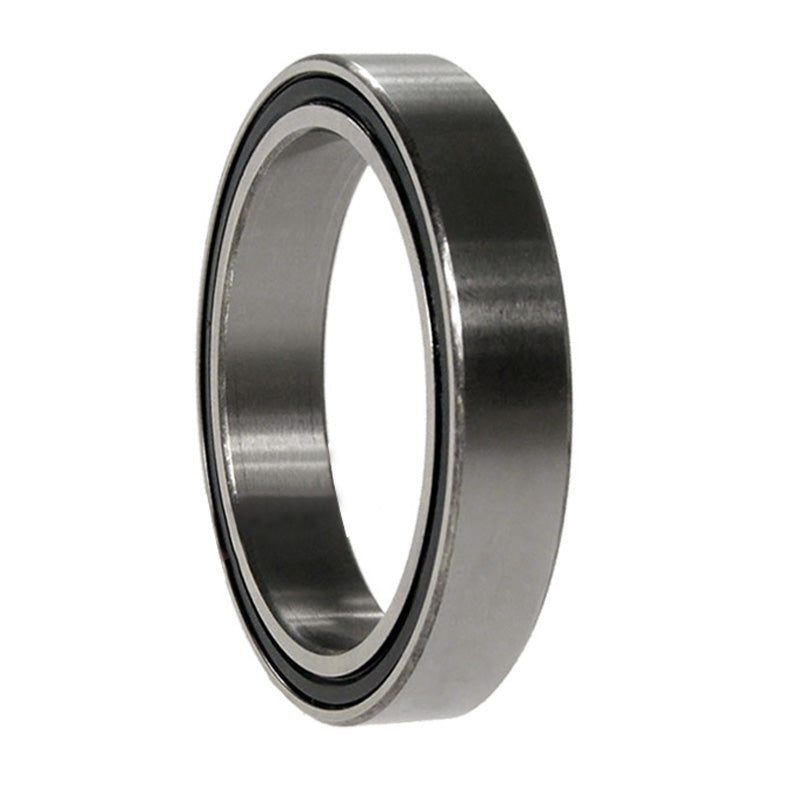

INA 3807B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 35x47x10mm
INA 3807B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 35x47x10mm
Regular price
€57,95
ex VAT
Regular price
Sale price
€57,95
ex VAT
Equivalent to: 5807B2RSRTVH
Low stock
Price Break
10+
€43,89
19+
€41,43
29+
€40,94
39+
€40,44
49+
€39,95
74+
€39,46
99+
€36,99
199+
€36,50
249+
€36,00
499+
€35,51
999+
€34,52
Quantity
Couldn't load pickup availability
Description
Description
|
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 47mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 47mm |
| B | 10mm |
| a | 22.6mm |
| d1 max | 44.1mm |
| Da max | 45mm |
| da min | 37mm |
| ra max | 0.3mm |
| r min | 0.3mm |
| Contact angle α | 25° |
| Weight | 0.041 kg |
| Dynamic load Cr | 6500 N |
| Static load Cor | 6800 N |
| Fatigue limit load Cur | 365 N |
| Reference speed | 7000 rpm |
| Limiting Speed | 7000 rpm |
