SKU: 358141C.MB

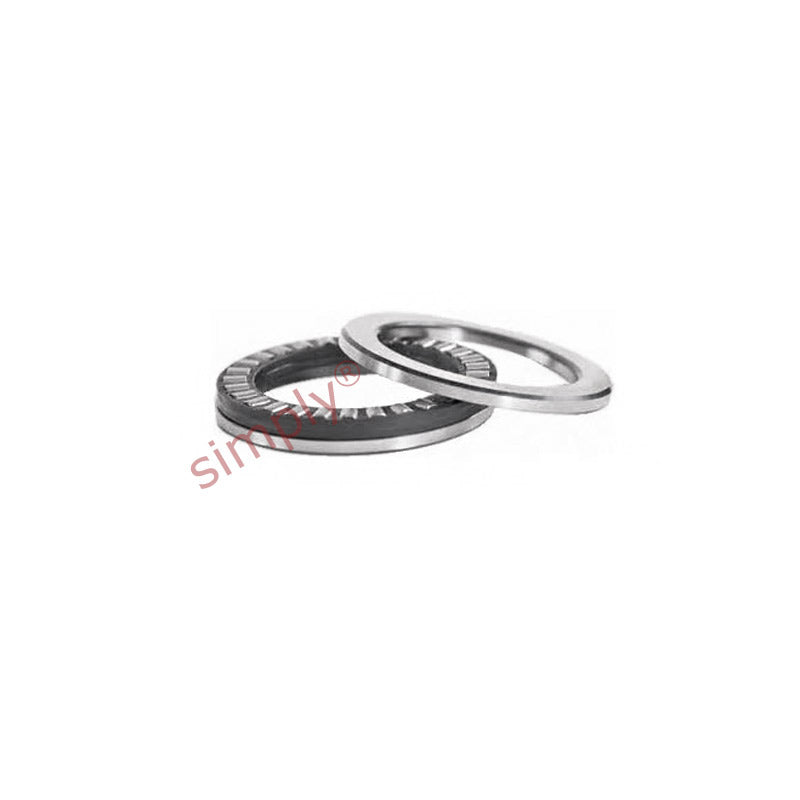

Major Brand 358141C Cylindrical Roller Thrust Bearing 180x300x85mm
Major Brand 358141C Cylindrical Roller Thrust Bearing 180x300x85mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 180mm
- Outside Diameter:
- 300mm
- Width:
- 85mm
Technical
Technical
| d | 180mm |
|---|---|
| D | 300mm |
| H | 85mm |
| Dynamic load C | 1320 kN |
| Static load Co | 4800 kN |
| Fatigue load limit Pu | 405 kN |
| Min load factor A | 1.8 |
| Reference speed | 360 rpm |
| Limiting speed | 480 rpm |
| Weight | 26 kg |
