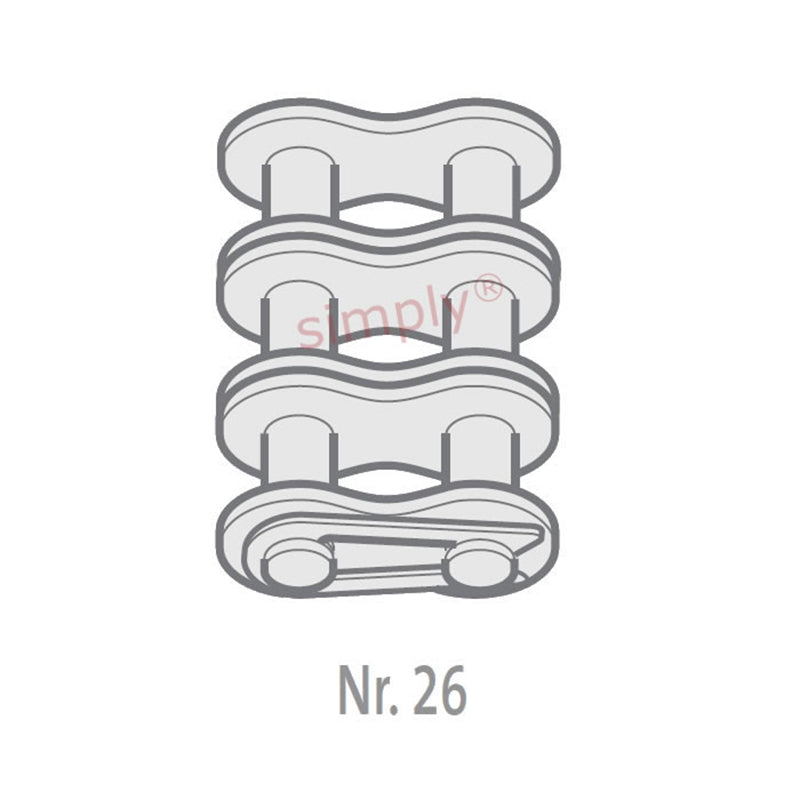

• Renold Synergy 35-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
1 1

SKU: 35-3-SYN-NO26-RENOLD

Renold Synergy 35-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/8 inch Pitch

Renold Synergy 35-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
€26,95 ex VAT
€26,95 ex VAT
Sale Sold out

Low stock

Price Break
2+ €20,27
5+ €19,13
10+ €18,90
29+ €18,67
49+ €18,44
75+ €18,22
100+ €17,08
200+ €16,85
250+ €16,62
500+ €16,39
1000+ €15,94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ANSI_NO26T_DESC
Brand / Quality:
Renold - High Quality
Pitch:
9.53mm = 0.375 (3/8) inch
Technical
Pitch (A) 0.375 inch
Pitch (A) 9.525mm
Inside Width min (B) 4.68mm
Roller Diameter max (C) 5.08mm
Plate Height max (D) 8.6mm
Plate Width Inner max (E) 1.29mm
Plate Width Outer max (F) 1.29mm
Pin Diameter max (G) 3.59mm
Pin Length max (H2) 32.2mm
Connecting Link Extension max (J) 1.7mm
Transverse Pitch nom (K) 10.13mm
ISO606 Tensile Strength min 23700 N
Weight 0.87kg/m
