SKU: 3313A-2Z-SKF

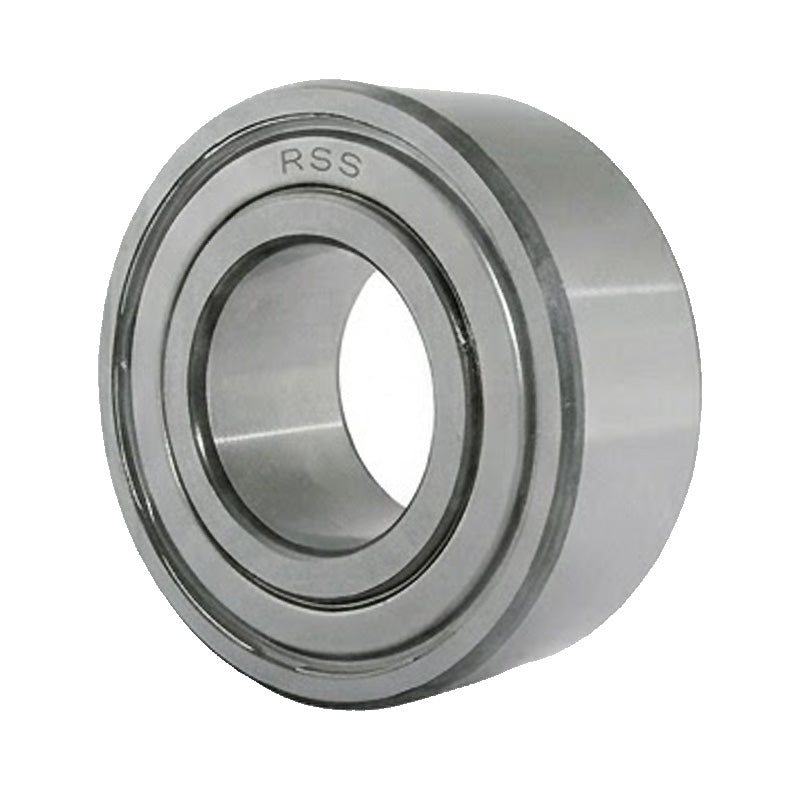

SKF 3313A2Z Double Row Angular Contact Ball Bearing with 2 Metal Shields 65x140x58.7mm
SKF 3313A2Z Double Row Angular Contact Ball Bearing with 2 Metal Shields 65x140x58.7mm
Equivalent to: 5313
Out of stock
Share this product
Description
Description
|
SKF Metal Shielded Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 58.7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 140mm |
| B | 58.7mm |
| Dynamic load Cr | 146 kN |
| Static load Cor | 110 kN |
| Fatigue load limit Pu | 4.55 kN |
| Max speed | 4500 rpm |
| Weight | 4.1 kg |
| d1 | 78.5mm |
| D1 | 130mm |
| r1r2 min | 2.1mm |
| a | 84mm |
| da min | 77mm |
| da max | 78.5mm |
| Da max | 130mm |
| ra max | 2mm |
