SKU: 3312-2Z-EU

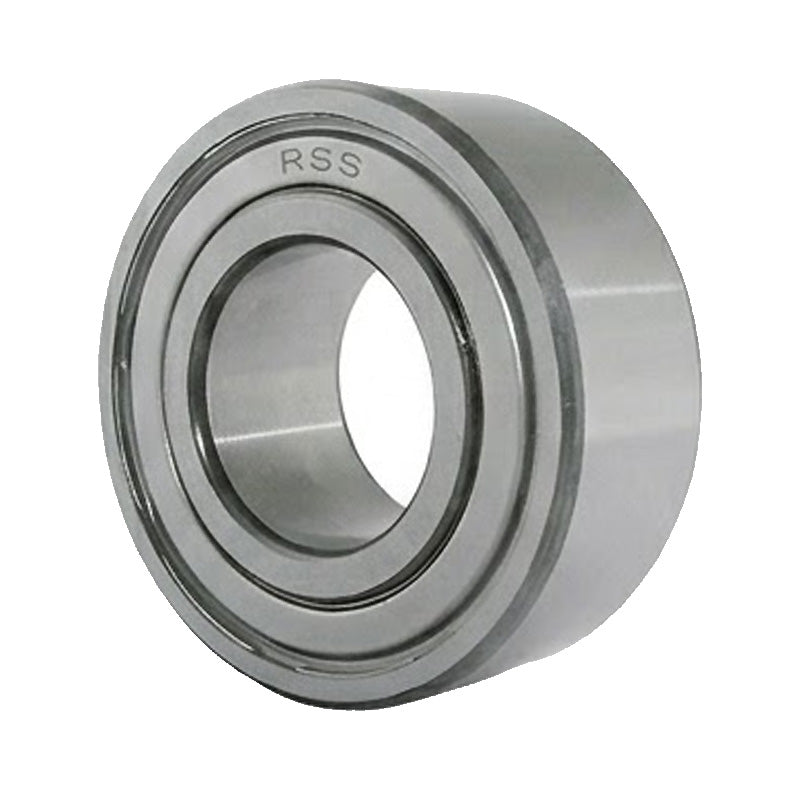

33122Z Budget Shielded Double Row Angular Contact Ball Bearing 60x130x54mm
33122Z Budget Shielded Double Row Angular Contact Ball Bearing 60x130x54mm
Out of stock
Share this product
Description
Description
Metal Shielded Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
Technical
Technical
| d | 60mm |
|---|---|
| D | 130mm |
| B | 54mm |
| Dynamic load C | 127 kN |
| Static load Co | 95 kN |
| Fatigue load limit Pu | 4.05 kN |
| Reference speed | 5000 rpm |
| Weight | 2.8 kg |
| d1 | 73.4mm |
| D1 | 118mm |
| r1r2 min | 2.1mm |
| a | 78mm |
| da min | 72mm |
| da max | 73mm |
| Da max | 118mm |
| ra max | 2mm |
